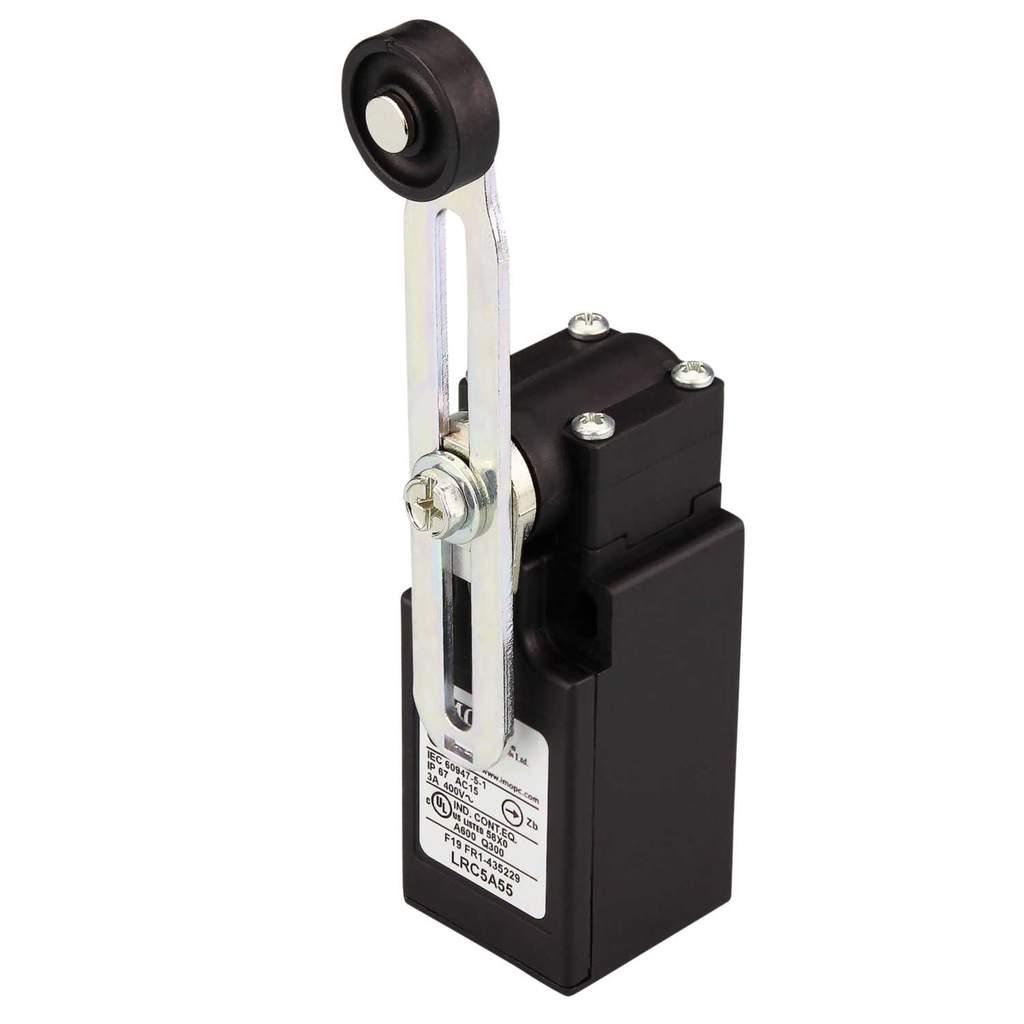

IMO Adjustable Roller Lever Compact Limit Switch
Part Number: LRC5A55
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- High precision snap action
- 1 normally open and 1 normally closed contacts
- Plastic housing with one conduit entry
- Protection degree IP67 according to EN 60529
- Adjustable roller from 104.5 to 163.5 mm
- Colour
- Black
- Contact Configuration
- 1 NO 1 NC
- Contact Type
- Snap Action
- Current Rating
- 3A
- Depth
- 30.8mm
- Dimensions
- (H)104.5 mm x (W)30.8 mm x (D)30.8 mm
- Guarantee
- 1 Year
- Head Type
- Compact Adjustable Roller Lever
- Height
- 104.5mm
- IP Rating
- IP67
- Material
- Plastic
- Operating Temperature Range
- -25-80°C
- Packaging Types
- Each
- Product Range
- Automation Products
- Standards
- EN 60947-5-1 EN 62061 EN ISO 13849-1 EN ISO 14119 EN81-1 EN81-2 EN81-20 EN81-50
- Type
- Limit Switch
- Unspsc V18
- 39122213
- Unspsc V24
- 39122213
- Voltage Rating
- 400V AC
- Weight
- 0.097kg
- Width
- 30.8mm
