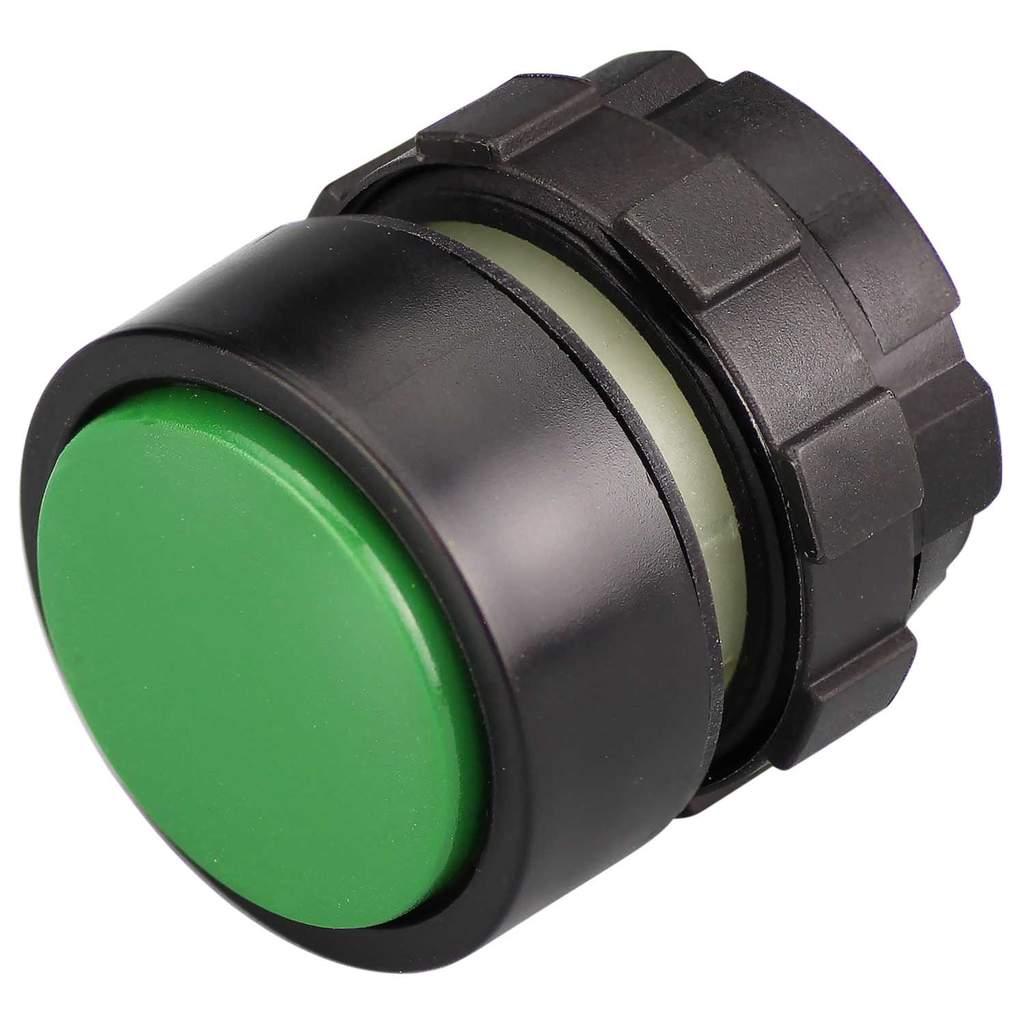

IMO Green Momentary Spring Return Pushbutton IP67
Part Number: PB02C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Green actuator with black bezel
- Non maintained flush pushbutton
- Mounting coupler and contact blocks available (sold separately)
- IMO model number BS3DGREEN
- Button Profile
- Flush
- Colour
- Green/Black
- Current Rating
- 10A
- Cut Out
- 22.5mm
- Diameter
- 28mm
- Dimensions
- (Dia)28 mm
- Guarantee
- 1 Year
- Illuminated
- No
- Ip Rating
- IP67
- Material
- Plastic
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -20°C
- Mounting
- Panel
- Operation Type
- Momentary
- Packaging Types
- Each
- Standards
- EN 60947-5-1 EN 60204-1
- Weight
- 0.02kg
