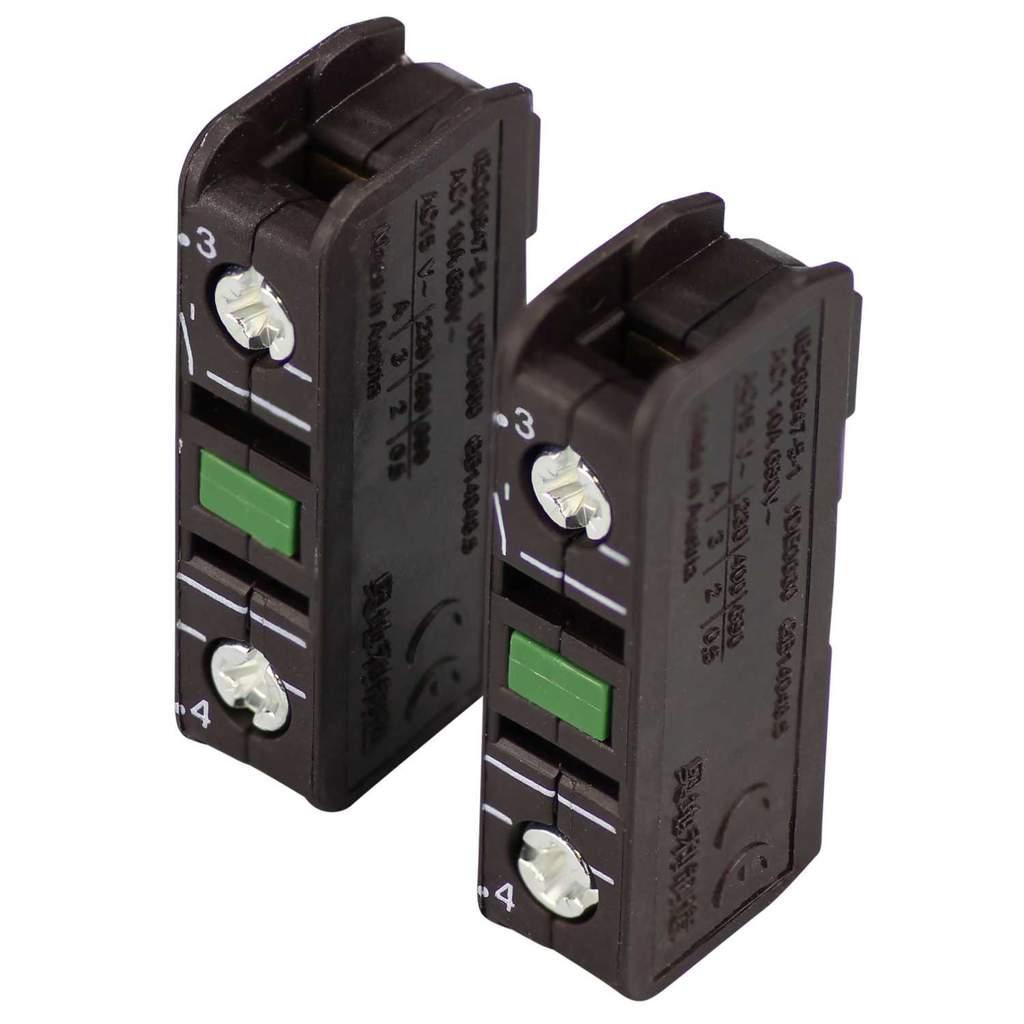

IMO 1NO Auxiliary Contact Block 2 Pack
Part Number: AC02C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments
- AC02C contains 2 x 1 normally open auxiliary contact MCA10
- AC1 690V 10A AC15 400V 2A AC15 230V 3A
- Colour
- Black/Green
- Contact Configuration
- 1 NO
- Depth
- 20mm
- Dimensions
- (L)43 mm x (W)10 mm x (D)20 mm
- Guarantee
- 1 Year
- Length
- 43mm
- Material
- High Temperature Rated Plastic (T90)
- Mounting
- Top Mount
- Packaging Types
- Pack
- Product Range
- Contact Blocks
- Standards
- EN 60947-4-1 EN 60947-5-1 EN 60204 -1
- Suitable For
- CR01C - CR12C Contactors
- Type
- Auxiliary Contact Block
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.03kg
- Width
- 10mm
