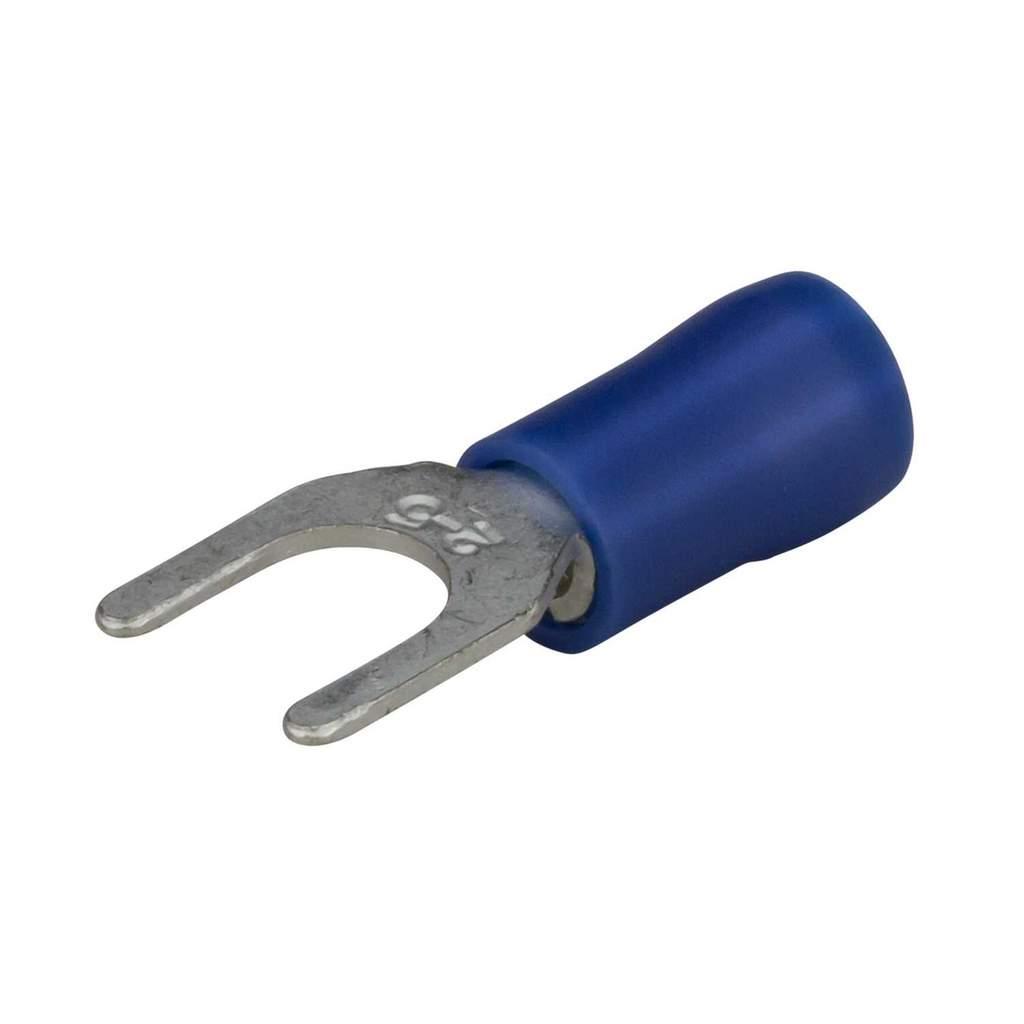

Cabac 5.0mm Fork Double Grip Pre Insulated Crimp Terminal Blue
Part Number: FS2-5DG
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Blue insulation: conductor size 1.5-2.5mm²
- Double crimp design crimps the wire and the insulation for extra pull strength and strain relief
- Working temperature -40°C to 105°C
- All terminals should be crimped onto the conductor using a quality crimper that is designed to crimp the specific terminal type
- Cable Size
- 2.5mm²
- Cable Size Range
- 1.0 - 2.6mm²
- Colour
- Blue
- Current Rating
- 24A
- Finish
- Tin Plated
- Guarantee
- 1 Year
- Insulated
- Yes
- Material
- Copper, PVC
- Operating Temperature
- 105°C
- Packaging Types
- Pack
- Product Range
- Pre-Insulated Terminals
- Size
- 5 mm
- Standards
- AS 3169 AS 4437
- Stud Size
- 5mm
- Terminal Type
- Fork
- Type
- Fork Terminal
- Unspsc V18
- 39121405
- Unspsc V24
- 39121405
- Voltage Rating
- 300V
- Weight
- 0.001kg
