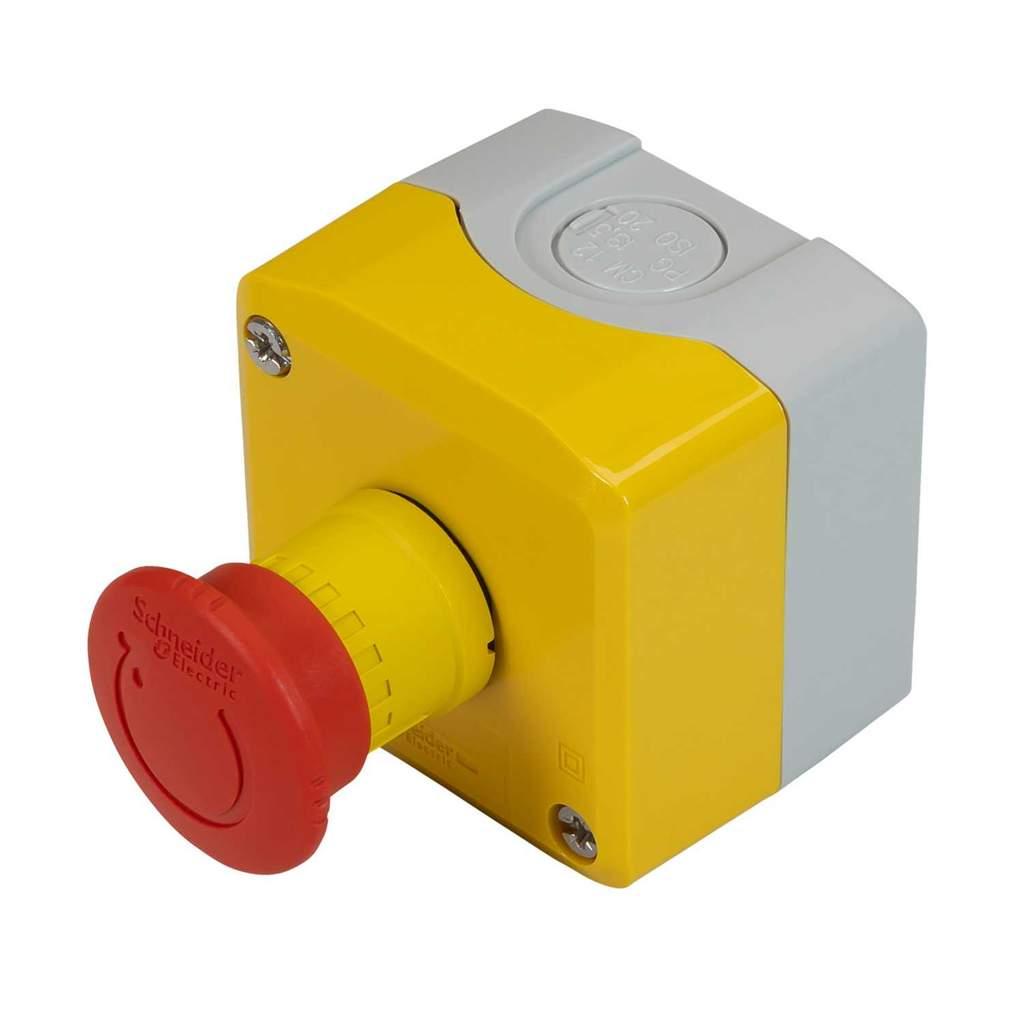

Schneider Harmony XALK Emergency Stop Twist to Release 1NO+1NC Pushbutton Station Yellow
Part Number: XALK178E
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Surface mounted polycarbonate control station
- Grey base, yellow cover
- Ø40mm red mushroom head pushbutton
- Twist to release
- 1NO 1NC slow-break contacts
- Colour
- Red/Yellow/Grey
- Contact Configuration
- 1 NO 1 NC
- Depth
- 91.5mm
- Dimensions
- (H)68 mm x (W)68 mm x (D)91.5 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Head Type
- Mushroom
- Height
- 68mm
- IP Rating
- IP66 / IP67 / IP69
- Material
- Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Surface
- Operation Type
- Twist Release
- Packaging Types
- Each
- Product Range
- Harmony XALK
- Standards
- IEC 60204-1 IEC 60947-1 IEC 60947-5-4 IEC 60364-5-53 IEC 60947-5-5 IEC 60947-5-1
- Type
- Emergency Stop Station
- Unspsc V18
- 39121565
- Unspsc V24
- 39121565
- Weight
- 0.162kg
- Width
- 68mm
