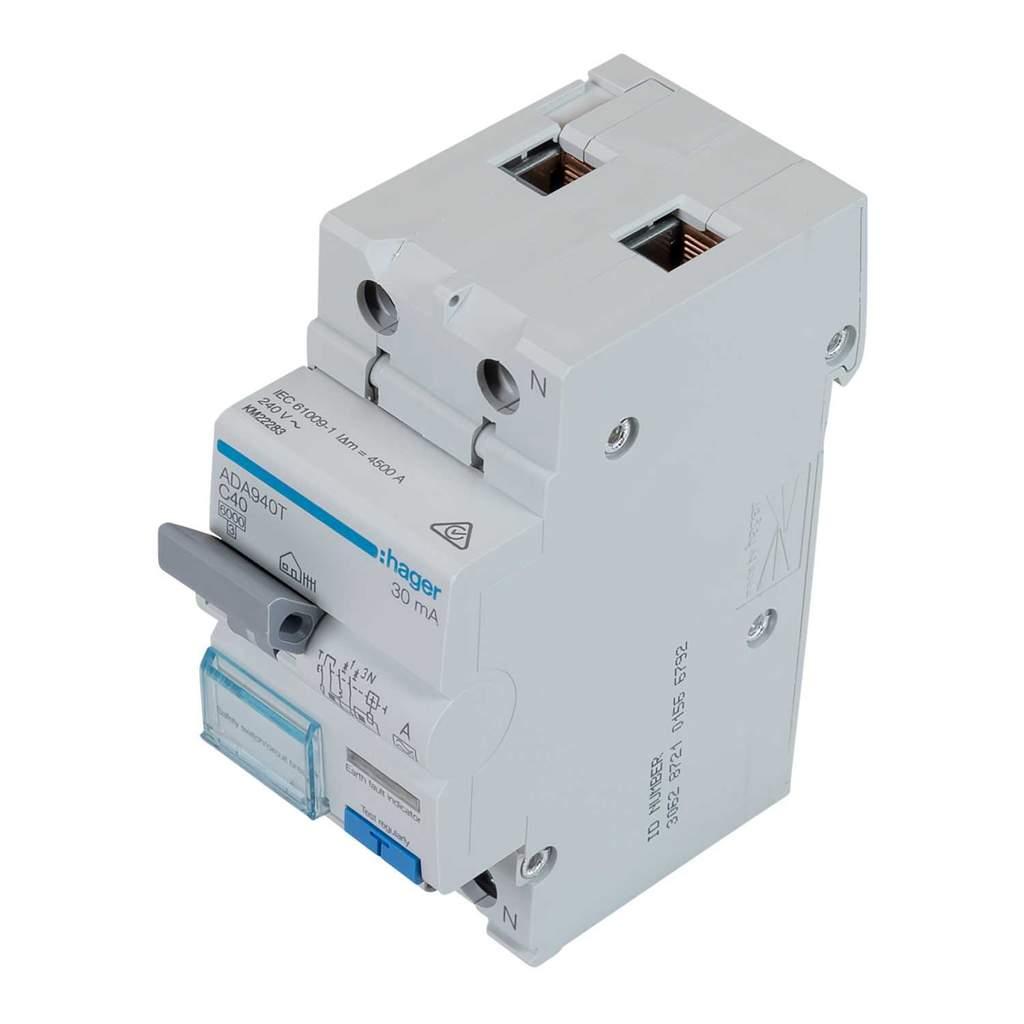

Hager 40A 1 Pole and Neutral 6kA C Curve 30mA RCBO
Part Number: ADA940T
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD in a single compact unit
- C curve MCB function for general light and power applications
- Type A 30mA RCD function provides general personnel protection
- Breaks both phase and neutral conductors
- Earth fault indicator
- Provision on the toggle for pad lock or seal to restrict unauthorized action
- Free tripping mechanism even if toggle is locked or sealed ON or OFF
- Two modules wide
- Colour
- Grey
- Current Rating
- 40A
- Depth
- 68mm
- Dimensions
- (H)83 mm x (W)35 mm x (D)68 mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 83mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- Din Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P+N
- Packaging Types
- Each
- Product Range
- ADA
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61009-1
- Torque Settings
- 2.1 N m
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Voltage Rating
- 240V AC
- Weight
- 0.236kg
- Width
- 35mm
