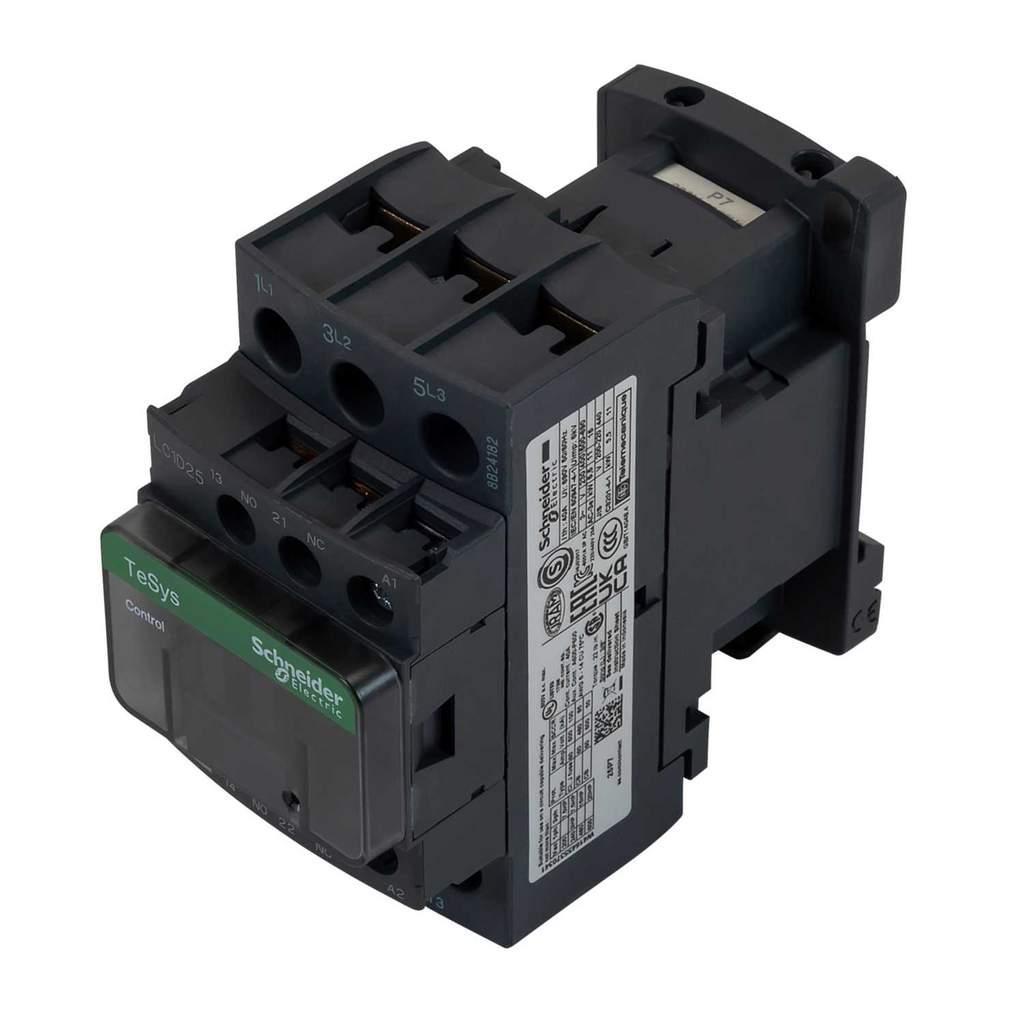

Schneider 25A AC3 3 Pole (3NO) 230V AC Coil TeSys D Contactor
Part Number: LC1D25P7
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For motor control applications up to 25A/690V AC-3/3e (11kW at 400V)
- Suitable for motors and resistive loads
- Easier to install and operate with multi-standard screws
- IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- 230V AC coil with transient suppressor module
- 1NO+1NC built-in auxiliary contacts (NC mirror certified)
- DIN rail or panel mounting
- Auxiliary Contact
- 1 NO + 1 NC
- Coil Voltage
- 230V AC
- Colour
- Dark Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 40A
- Current Rating Ac3
- 25A
- Depth
- 92mm
- Dimensions
- (H)85 mm x (W)45 mm x (D)92 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 85mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail / Panel
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- TeSys Deca
- Standards
- CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1
- Type
- Contactor
- Voltage Rating
- 690V AC 300V DC
- Weight
- 0.428kg
- Width
- 45mm
