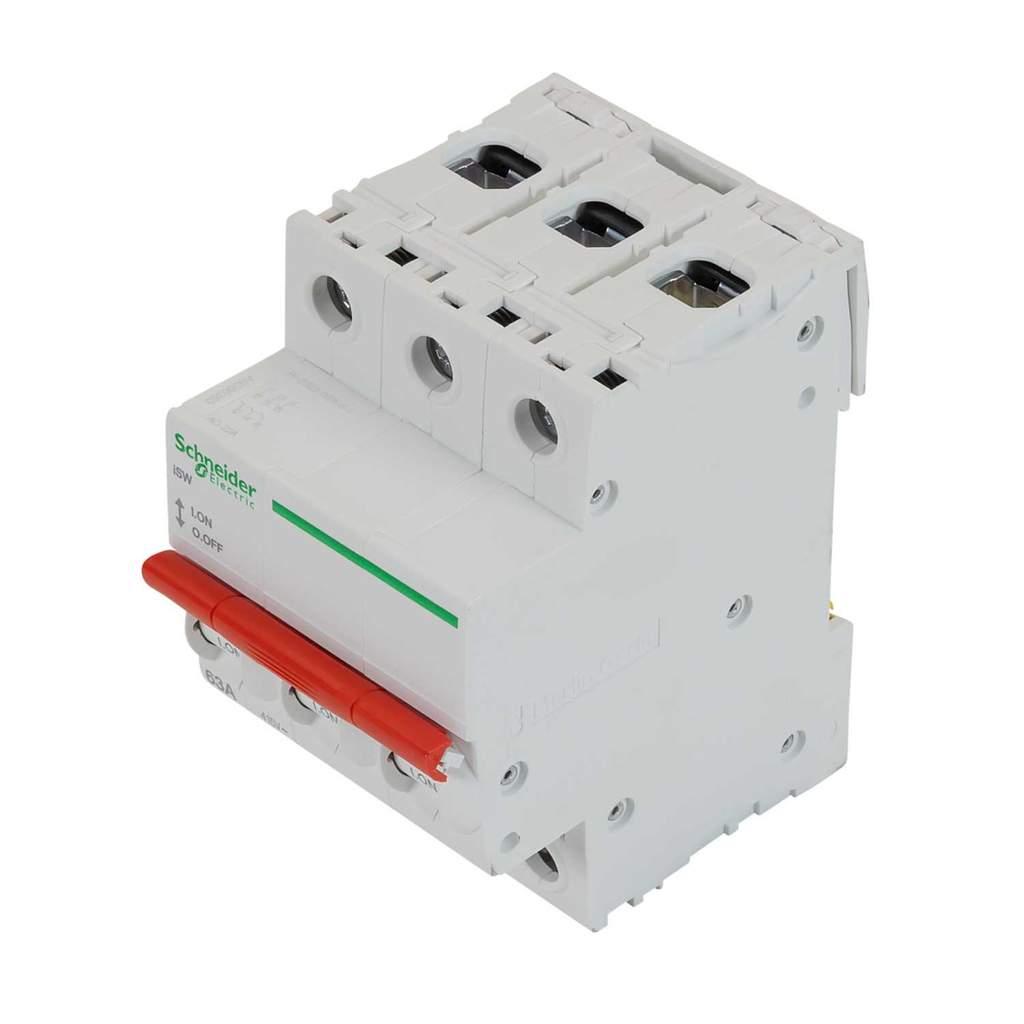

Schneider 63A 3 Pole Red Toggle Acti9 Main Switch
Part Number: A9S66363
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Modular, three phase switch disconnector
- Red toggle for easy identification of isolator
- Colour
- White/Red
- Current Rating
- 63A
- Depth
- 73mm
- Dimensions
- (H)85 mm x (W)54 mm x (D)73 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 85mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- Din Rail
- Number Of Modules
- 3
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Acti 9
- Short Circuit Rating
- 5kA
- Standards
- AS 60947-3 BS EN 60947-3 EN 60947-3 NZS 60947-3 IEC 60947-3
- Torque Settings
- 3.5 N m
- Type
- Main Switch
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 415V AC
- Weight
- 0.258kg
- Width
- 54mm
