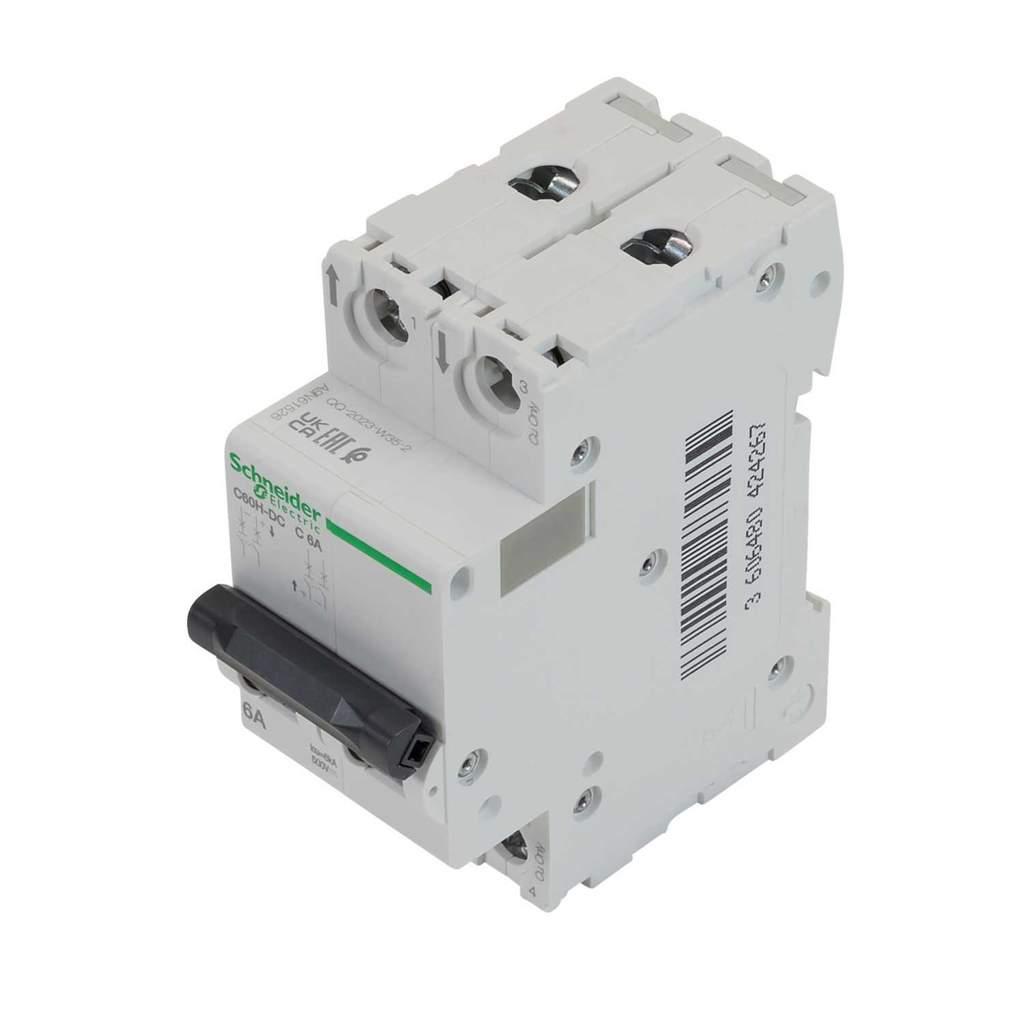

Schneider 6A DC 2 Pole C Curve Acti9 C60H-DC MCB
Part Number: A9N61526
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 2 pole, low voltage miniature circuit breaker used in DC circuits
- Thermal-magnetic tripping for overload and short circuit protection
- Dedicated to industrial control, automation, transport and renewable energy applications
- 2.5 N m tightening torque on top or bottom connections
- Operational voltage 500V DC
- Breaking capacity:-
- 6 kA Icu at 250 V DC conforming to EN/IEC 60947-2
- 10 kA Icu at 220 V DC conforming to EN/IEC 60947-2
- 20 kA Icu at 110 V DC conforming to EN/IEC 60947-2
- VisiTrip for safety during maintenance
- VisiSafe to reduce intervention time
- 2 modules wide
- Colour
- White/Green
- Current Rating
- 6A
- Depth
- 73mm
- Dimensions
- (H)81 mm x (W)36 mm x (D)73 mm
- Guarantee
- 18 Months
- Height
- 81mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- EN 60947-2 IEC 60947-2 IEC 60529 IEC 60068-2
- Tripping Characteristics
- C Curve
- Type
- DC Miniature Circuit Breaker
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 500V DC
- Weight
- 0.225kg
- Width
- 36mm
