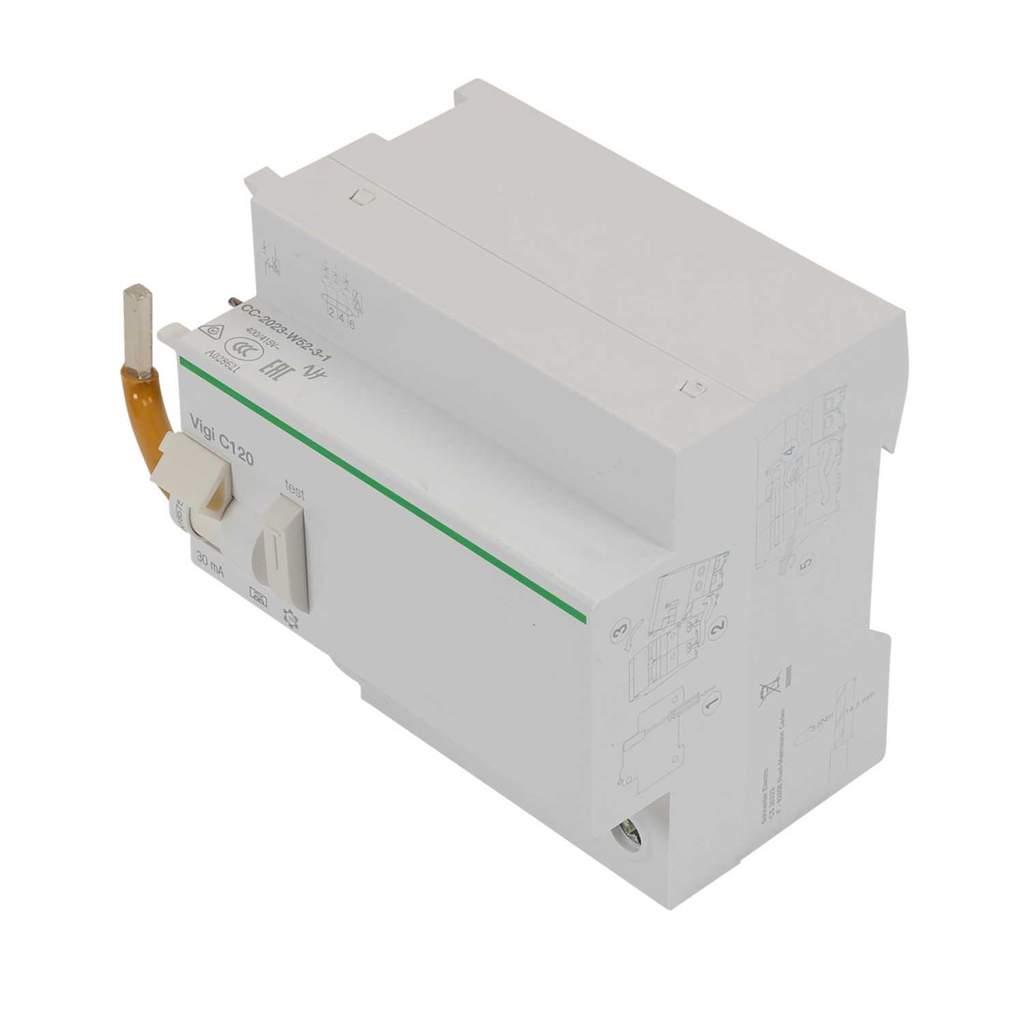

Schneider 125A 3 Pole 30mA Type A Acti9 C120 RCD add-on Block
Part Number: A9N18575
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Modular add-on residual current device that combines with a C120 circuit breaker
- Protects against electrical shock by direct or indirect contact
- Type A earth leakage protection at 30mA
- Network type AC
- Colour
- White/Green
- Current Rating
- 125A
- Depth
- 73mm
- Dimensions
- (H)95 mm x (W)171 mm x (D)73 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 95mm
- Incoming Terminal Capacity
- 50mm² Rigid, 35mm² Flexible
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 5
- Number Of Poles
- 3 Pole
- Operating Temperature Range
- -25 - 60°C
- Outgoing Terminal Capacity
- 50mm² Rigid, 35mm² Flexible
- Packaging Types
- Each
- Product Range
- Acti9
- Rcd Type
- A
- Standards
- IEC/EN 61009-2-1
- Torque Settings
- 3.5 N m
- Tripping Sensitivity
- 30mA
- Type
- RCD add-on Block
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 415V AC
- Weight
- 0.718kg
- Width
- 171mm
