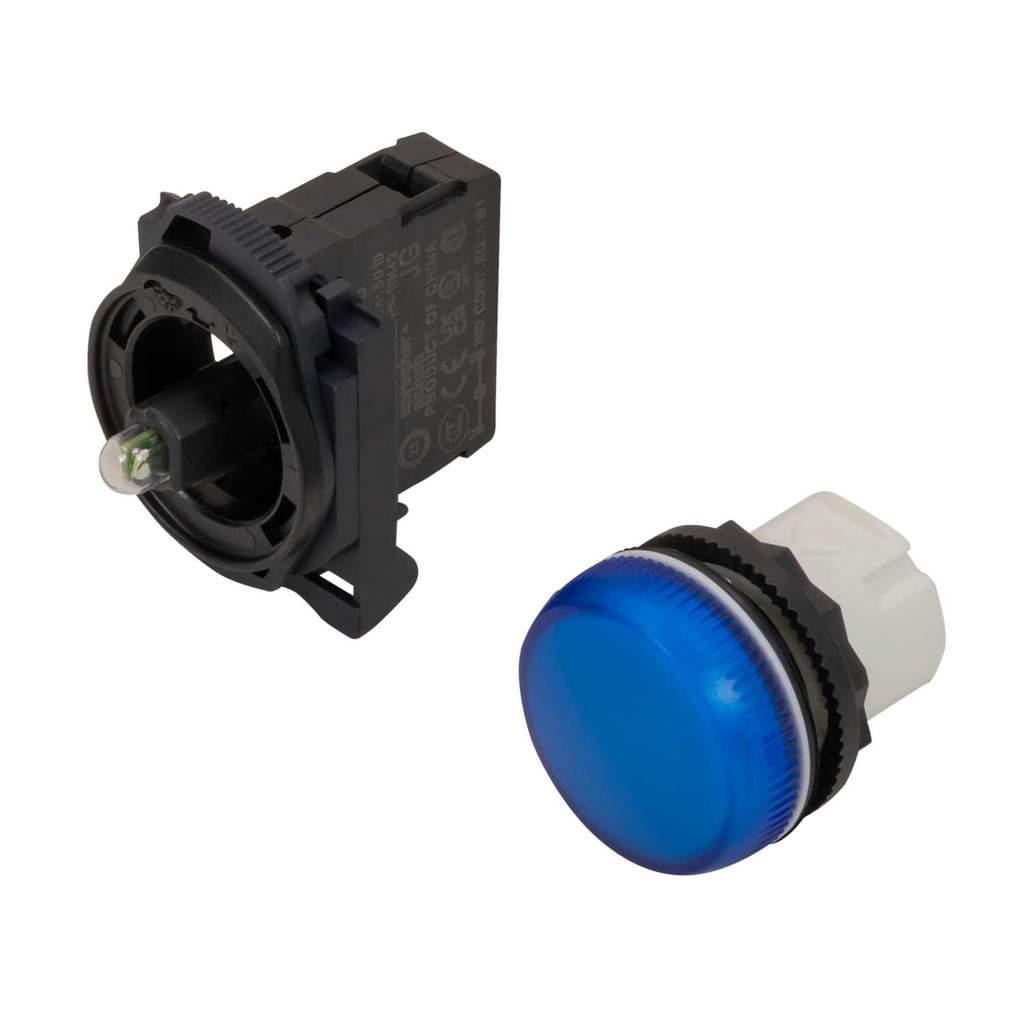

Sprecher+Schuh 24V AC/DC 22.5mm LED Pilot Light Blue
Part Number: D7PP6PN3W
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Sprecher Schuh D7 line pilot light
- Modular design allows for easy configuration and assembly
- Plastic body
- Integrated LED lamp block
- Changeable colour cap
- Colour
- Blue
- Current Rating
- 0.03A
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29.6 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- IP Rating
- IP66 / IP69
- Illuminated
- Yes
- Lamp Included
- Yes
- Lens Colour
- Blue
- Light Source
- Integral LED
- Material
- Plastic
- Mounting
- Panel Mount/Pushbutton Enclosure
- Packaging Types
- Each
- Product Range
- D7
- Type
- Pilot Light
- Unspsc V18
- 39121534
- Unspsc V24
- 39121534
- Voltage Rating
- 24
- Weight
- 0.033kg
- Width
- 29.6mm
