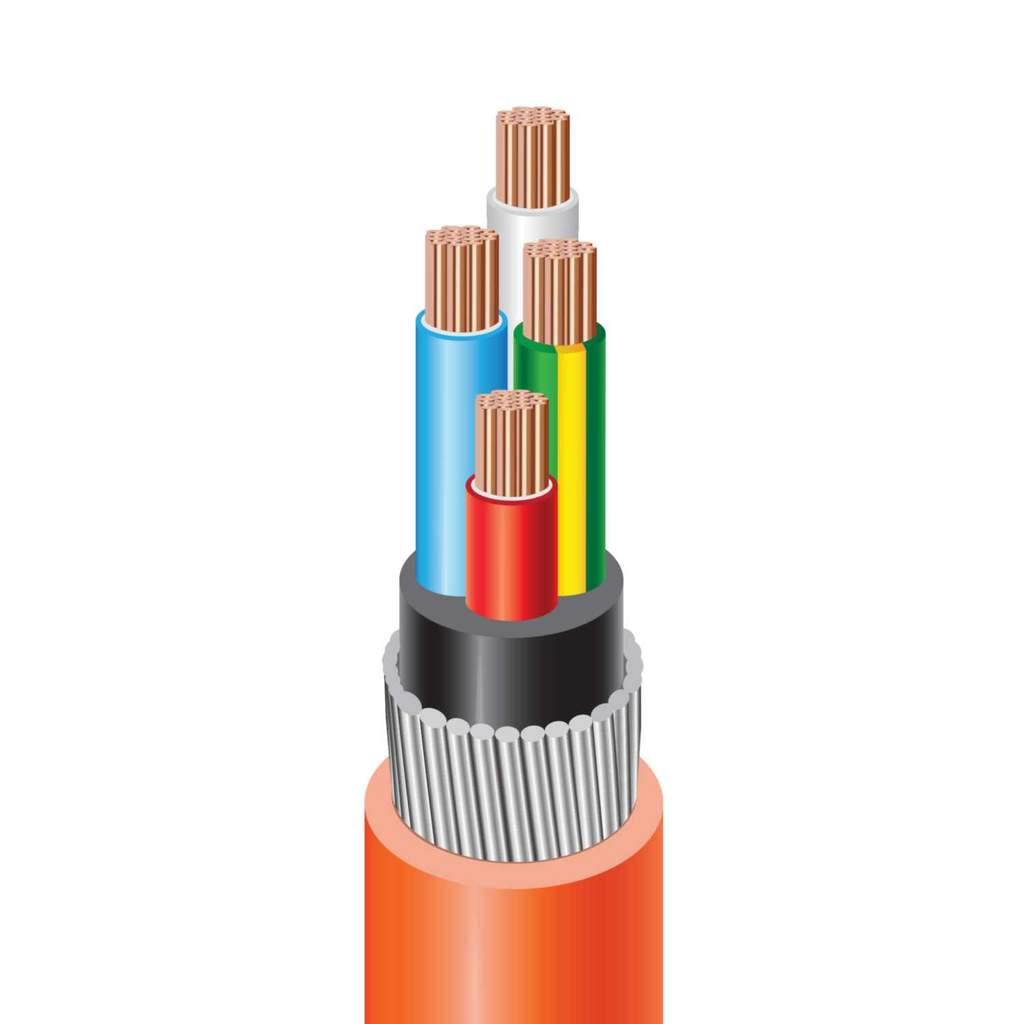

Electra 50mm² 3 Core and Earth SWA XPLE Orange Circular 0.6/1kV V90 (100m Drum)
Part Number: XLPE3500ESWA
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For mains, sub-mains and sub-circuits
- Unenclosed, enclosed in conduit, buried direct or underground ducts for buildings and industrial projects
- Galvanised steel wire armoured for higher mechanical protection
- Suitable for glanding
- V90 PVC insulation
- Plain annealed copper conductors
- Red, white, blue green/yellow X-90 XLPE insulated cores
- Greenstar approved
- Armour Type
- SWA [Galvanised Steel Wires]
- Colour
- Orange
- Conductor Size
- 50mm²
- Dimensions
- (L)100 m
- External Diameter
- 35.1mm
- Finish
- Plain Annealed
- Guarantee
- 1 Year
- Insulation Type
- X-90 XLPE
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 3 E
- Online Search Priority
- 1
- Packaging Types
- Drum
- Product Range
- XLPE SWA
- Sheath
- 5V-90 PVC
- Sheath Thickness
- 2.0mm
- Standards
- AS/NZS 5000.1 AS/NZS 1125 AS/NZS 3808
- Type
- Circular and Power Cables
- Unspsc V18
- 26121615
- Unspsc V24
- 26121615
- Voltage Rating
- 600V 1000V
- Weight
- 3.11kg
