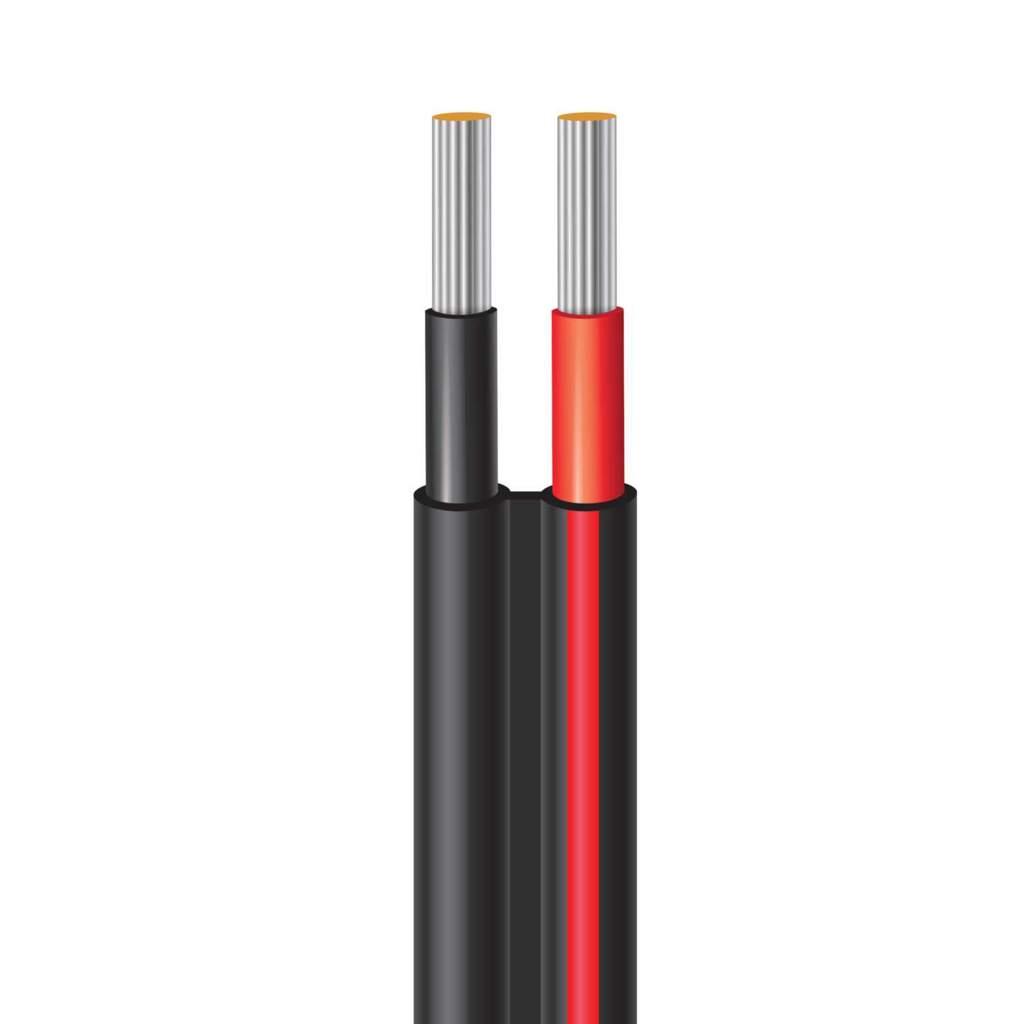

Electra 6.0mm² Twin Core Solar PV Cable Black (100mm Drum)
Part Number: PV84032-100BK
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Suitable for use in photovoltaic power supply system
- May be installed as free moving, fixed or hanging. they can also be installed in cable trays, conduits, on or in walls
- Annealed tinned flexible copper class 5 conductors
- Core colours - red and black
- Black with a red trace XLPO sheath
- Low smoke zero halogen
- Electron beam cross linked polyolefin XLPO insulation
- Maximum calculated PV voltage of 1000V D.C for domestic installation and 1500V D.C for other installation
- Greenstar approved
- Colour
- Black/Red
- Conductor Class
- 5
- Conductor Size
- 6.0mm²
- Core Colours
- Red and Black
- Dimensions
- (L)100 m
- Guarantee
- 1 Year
- Insulation Type
- XLPO
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 2
- Online Search Priority
- 1
- Packaging Types
- Drum
- Previously Known As
- PV84032
- Product Range
- PV
- Sheath
- XLPO
- Sheath Thickness
- 0.8mm
- Standards
- AS/NZS 5033:2021 IEC62930 IEC60332-1-2 IEC60811-403 IEC62930
- Type
- Solar Cable
- Unspsc V18
- 26121614
- Unspsc V24
- 26121614
- Weight
- 0.2kg
