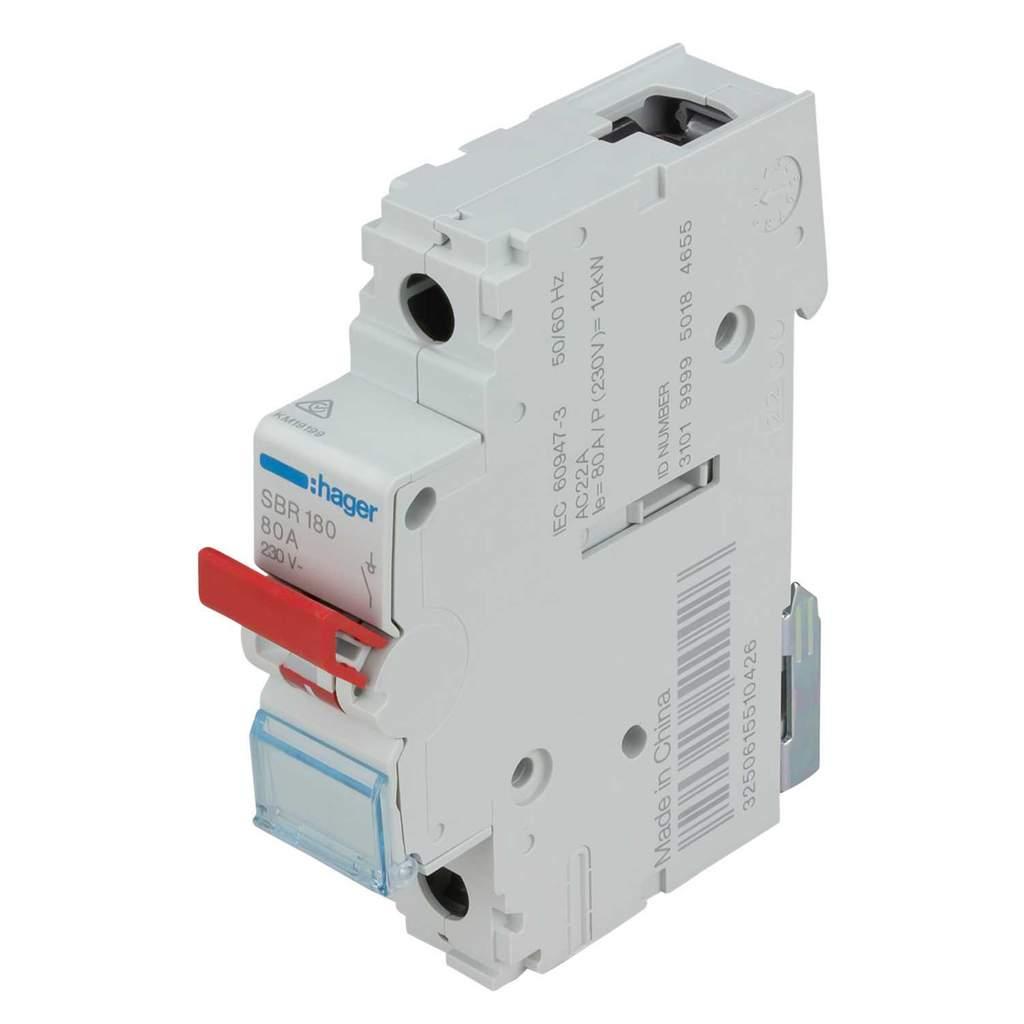

Hager 80A 1 Pole Red Toggle Main Switch
Part Number: SBR180
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Modular, single phase switch disconnector
- Red toggle for easy identification of isolator
- Transparent circuit identification label holder
- Cage clamp connection has a capacity of 50mm² rigid or 35mm² flexible conductors
- Colour
- Grey
- Current Rating
- 80A
- Depth
- 68mm
- Dimensions
- (H)83 mm x (W)17.5 mm x (D)68 mm
- Frequency
- 50/60 Hz
- Guarantee
- 2 Years
- Height
- 83mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- Din Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Standards
- IEC 60669.1 IEC 60947.3
- Terminal Capacity
- 50mm²
- Torque Settings
- 3.6 N m
- Type
- Main Switch
- Voltage Rating
- 230V AC
- Weight
- 0.08kg
- Width
- 17.5mm
