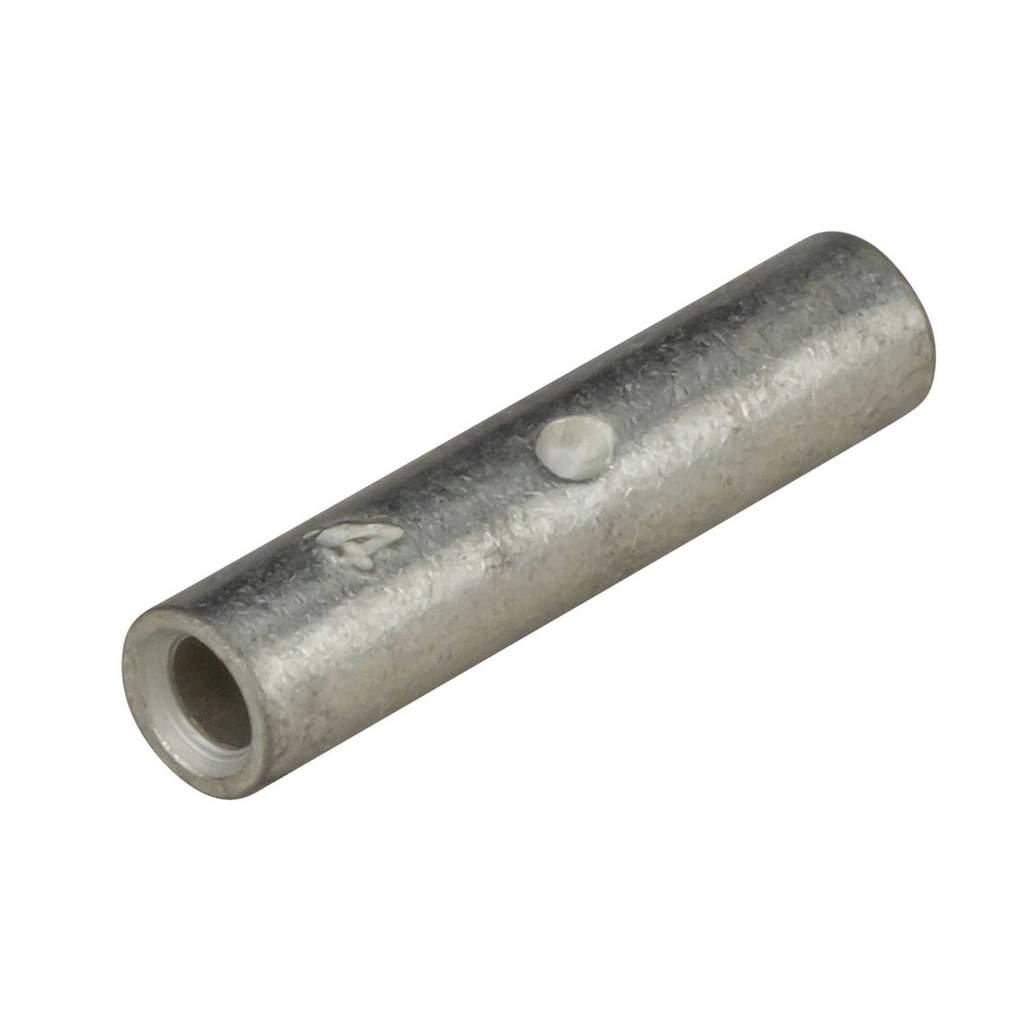

CJS 4.0mm² Copper Crimp Link
Part Number: LINK-CU-4
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For flexible and stranded CU conductors
- Electrolytic copper 99.95% purity
- Tin plated annealed material ensures optimal crimping properties
- Internal chamfer for easy cable insertion
- Manufactured to AS/NZS4325-Part 1
- Cable Size
- 4.0mm²
- Colour
- Silver
- Diameter
- 4mm
- Dimensions
- (L)22 mm x (Dia)4 mm
- Finish
- Tin Plated
- Guarantee
- 1 Year
- Insulated
- No
- Length
- 22mm
- Material
- Copper
- Operating Temperature
- 155°C
- Packaging Types
- Each
- Product Range
- Standard
- Standards
- AS/NZS4325 Part 1
- Type
- Copper Sleeve
- Unspsc V18
- 39121449
- Unspsc V24
- 39121449
- Weight
- 0.002kg
