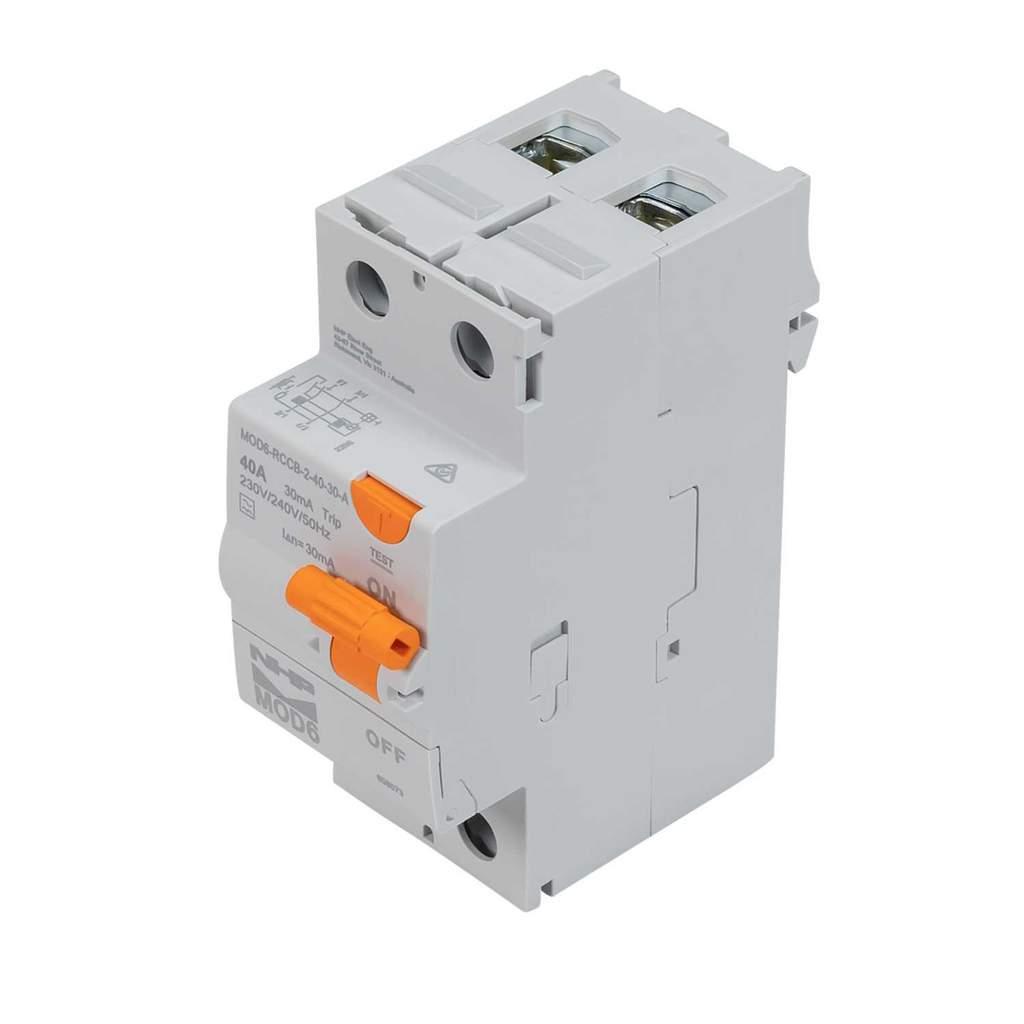

NHP 40A 1 Pole and Neutral 30mA Type A MOD6 RCD
Part Number: MOD6RCCB24030A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 30mA RCD provides general personnel protection from earth faults
- Type A RCD is used for alternating sinusoidal residual current and for residual pulsating direct current up to 6 mA
- Fast connection pin/fork busbar comb or busbar chassis
- Conductor entry from either top or bottom
- Provision for sealing
- Trip free mechanism and can be padlocked either on or off
- Suits loadcentres and pole covers
- Colour
- Grey/Orange
- Current Rating
- 40A
- Depth
- 76mm
- Dimensions
- (H)86 mm x (W)36 mm x (D)76 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 86mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P+N
- Packaging Types
- Each
- Product Range
- MOD6
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61008 AS/NZS 61008-1 AS/NZS 61009 IEC 60077-16-3 IEC 60947-2
- Torque Settings
- 5 N m
- Tripping Sensitivity
- 30mA
- Type
- RCD
- Voltage Rating
- 240V AC
- Weight
- 0.198kg
- Width
- 36mm
