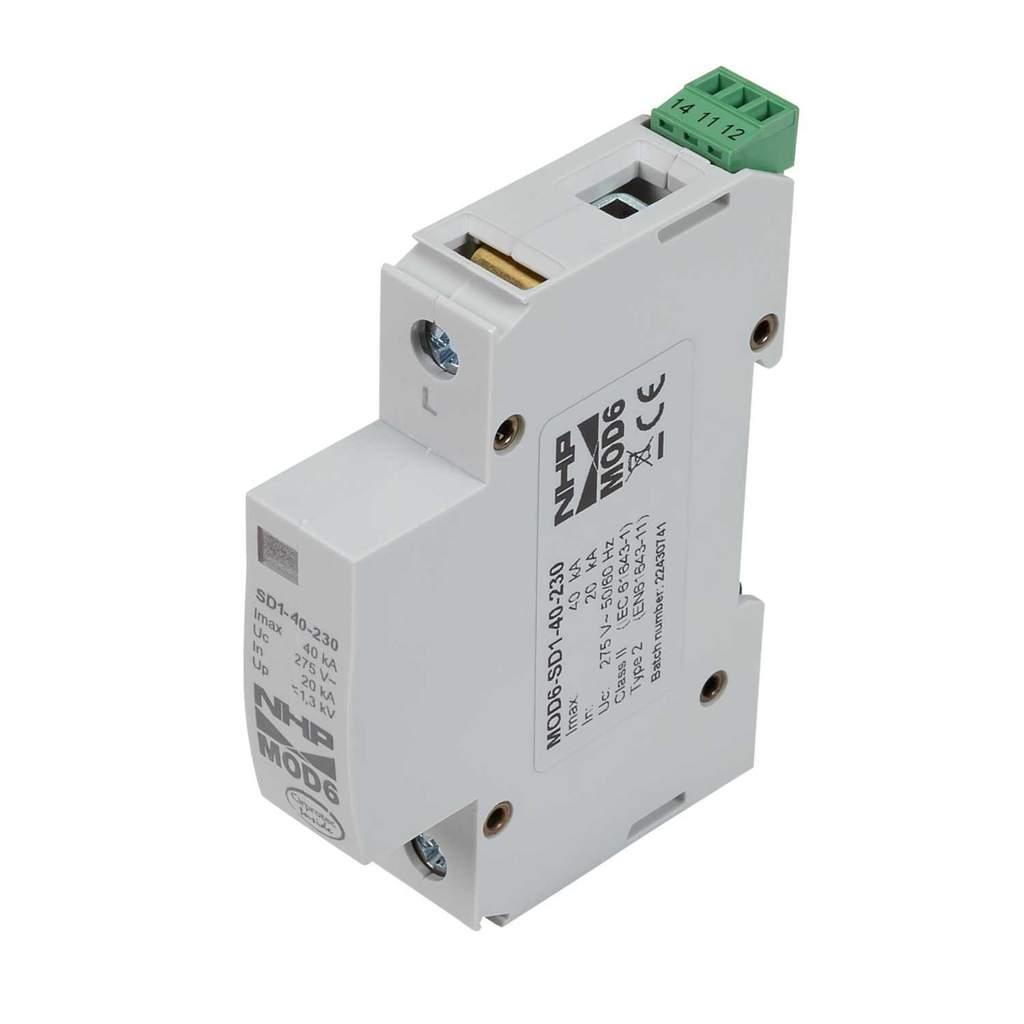

NHP 1 Pole 40kA MOD6 Surge Diverter
Part Number: MOD6SD140230
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- MOD6 electrical network diverters are a range of devices for discharging induced transient overvoltages (Type 2 / Class II)
- DIN rail plug-in format
- Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed
- Suitable for first stage of protection in residential, commercial or other applications not exposed to direct strikes and with no external lightning protection system
- High discharge capacity with an 8/20 μs waveform
- Imax: 40 kA
- Remote and visual indication of life status of the protection device
- Biconnect - two types of terminal: for rigid or flexible cable and for fork type comb busbar
- Colour
- Grey
- Compliance
- IEC 61643-1 IEC 61643-11
- Current Rating
- 80A
- Depth
- 70mm
- Dimensions
- (H)90 mm x (W)18 mm x (D)70 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- IP Rating
- IP20
- Material
- Plastic
- Maximum Discharge Current
- 40kA
- Mounting
- Din Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Electrical Network Diverter
- Standards
- IEC 61643-11
- Terminal Capacity
- 35mm²
- Type
- Surge Protection Device
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 230V AC
- Weight
- 0.095kg
- Width
- 18mm
