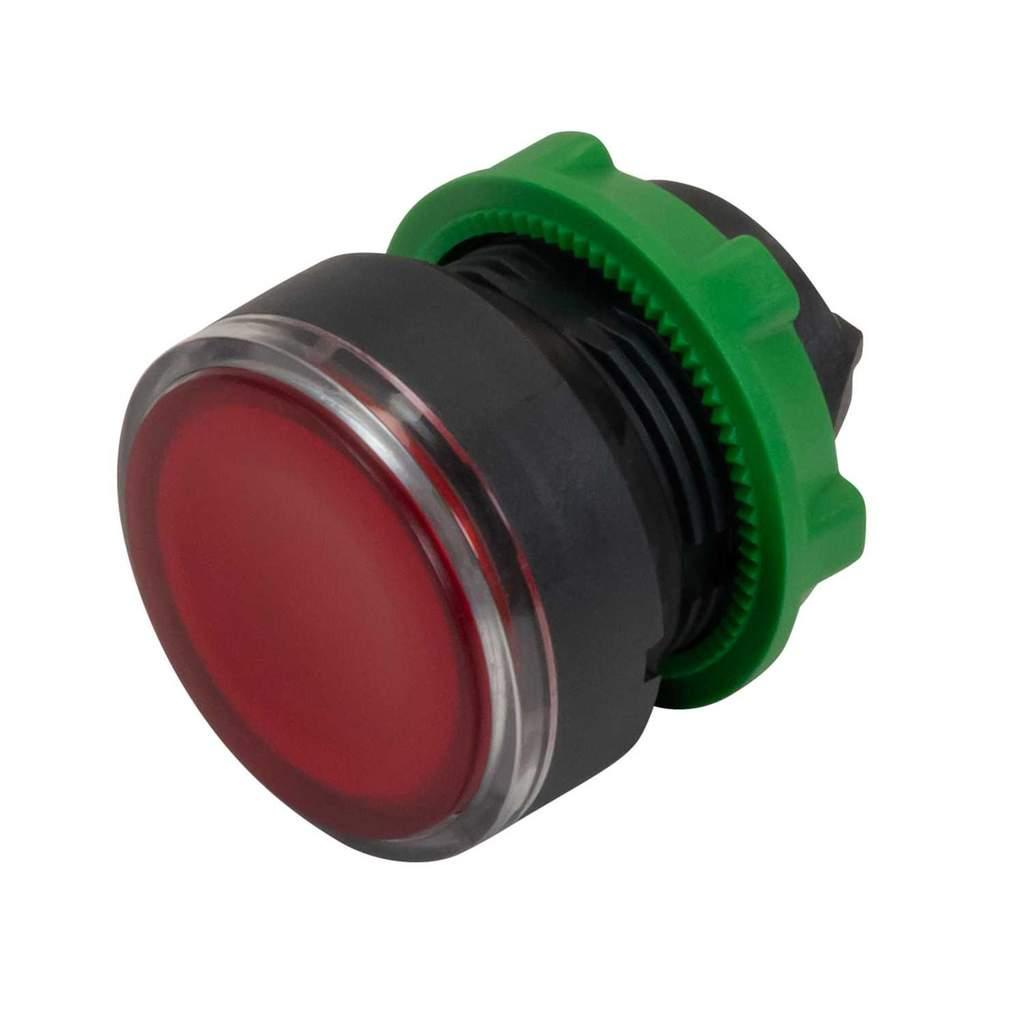

Schneider Harmony XB5 Illuminated Spring Return LED Pushbutton Head Red
Part Number: ZB5AW343
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Head for illuminated pushbutton
- Plastic bezel
- Spring return
- Flush button, unmarked
- Plain lens
- For integral LED
- Colour
- Red
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29 mm
- Guarantee
- 18 Months
- Head Type
- Flush
- Ip Rating
- IP66
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB5
- Standards
- IEC 60947-5-4 IEC 60947-1 IEC 60947-5-1
- Storage Temperature Range
- -40-70°C
- Type
- Pushbutton Head
- Weight
- 0.017kg
- Width
- 29mm
