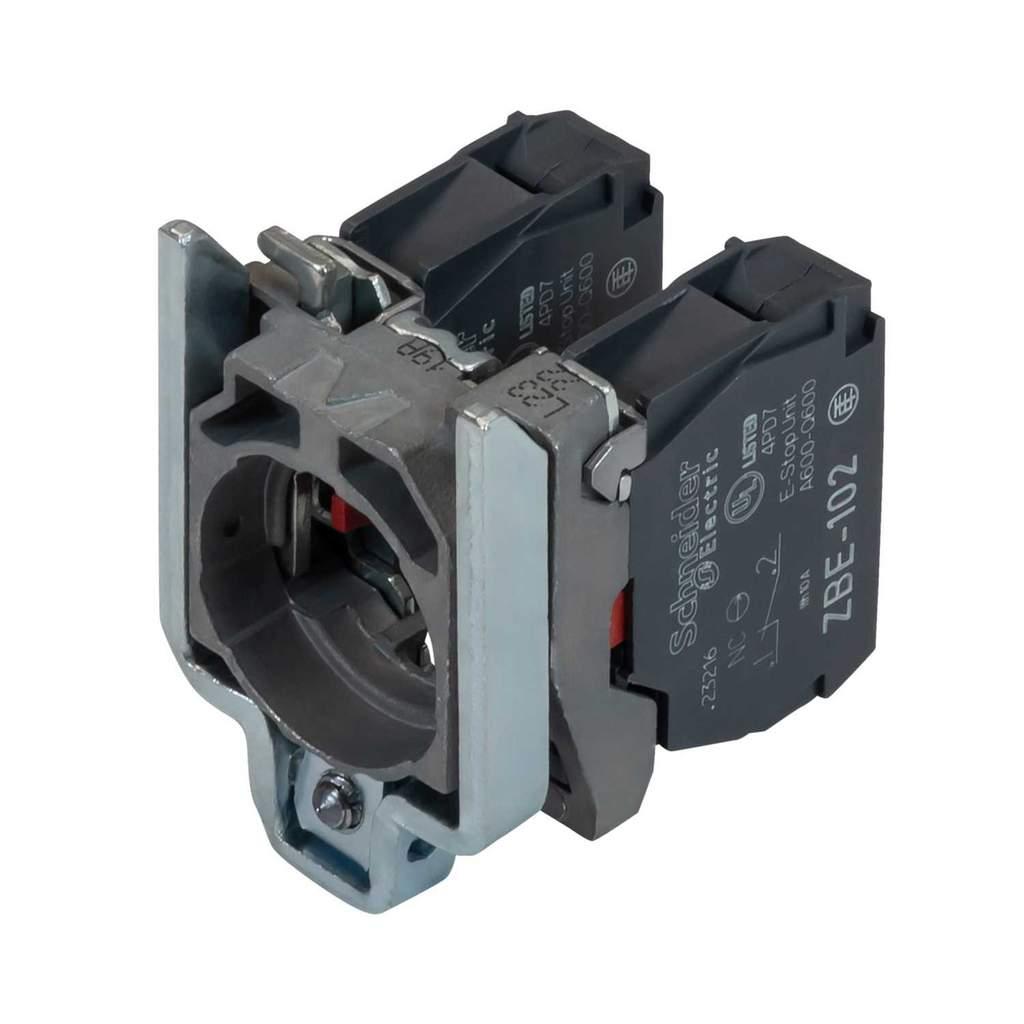

Schneider Harmony XB4 2NC Contact Block with Metal Fixing Collar
Part Number: ZB4BZ104
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Metal body fixing collar, pre-mounted with contact blocks
- Simply adding a Harmony XB4 head to suit the application will provide a complete assembly
- Standard screw clamp terminals on contact blocks
- Colour
- Silver/Black
- Connection Type
- Screw Clamp
- Contact Configuration
- 2 NC
- Depth
- 37mm
- Dimensions
- (H)47 mm x (W)30 mm x (D)37 mm
- Guarantee
- 18 Months
- Head Type
- Standard
- Height
- 47mm
- Ip Rating
- IP20
- Material
- Plastic, Metal
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- CSA C22.2 No 14 IEC 60947-5-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-5 IEC 60947-1 JIS C8201-1
- Type
- Body/Contact Assembly
- Weight
- 0.059kg
- Width
- 30mm
