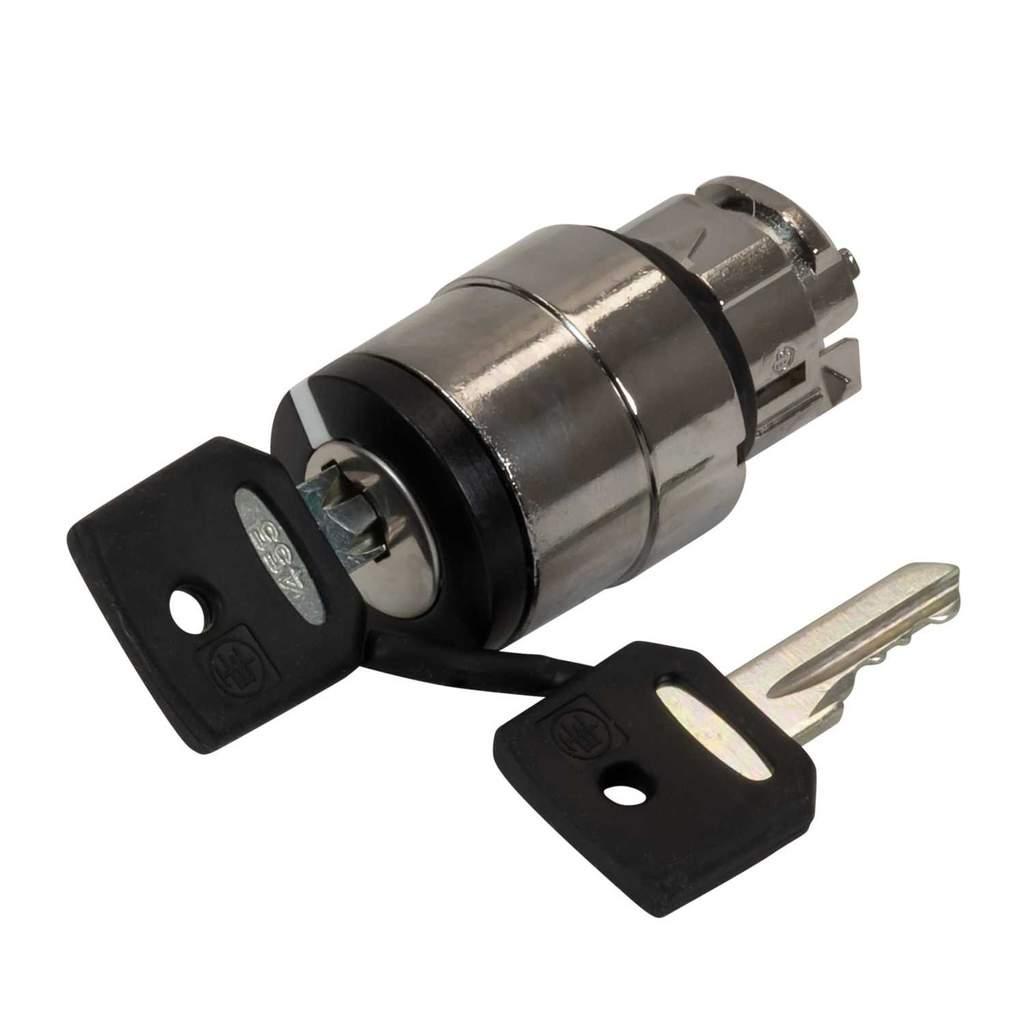

Schneider Harmony XB4 2 Position Spring Return to Left Key Selector Switch Head Black
Part Number: ZB4BG6
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Secures machine and system operation with a key
- Spring return to left, 22mm key switch head with metal bezel
- 2 positions 90°
- Key can be withdrawn in left position
- Impact, dust, water and vibration resistant
- Designed to fit standard 22.5mm cutout
- Colour
- Black
- Cut Out
- 22.5mm
- Depth
- 72mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29 mm x (D)72 mm
- Guarantee
- 18 Months
- Head Type
- Key Operated
- IP Rating
- IP66 / IP67 / IP69
- Key Removal Position
- Left
- Material
- Metal, Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Number Of Positions
- 2
- Operation Type
- Spring Return Switch Head
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5
- Type
- Key Selector Switch Head
- Type Of Key Lock
- Ronis 455
- Unspsc V18
- 39122224
- Unspsc V24
- 39122224
- Weight
- 0.105kg
- Width
- 29mm
