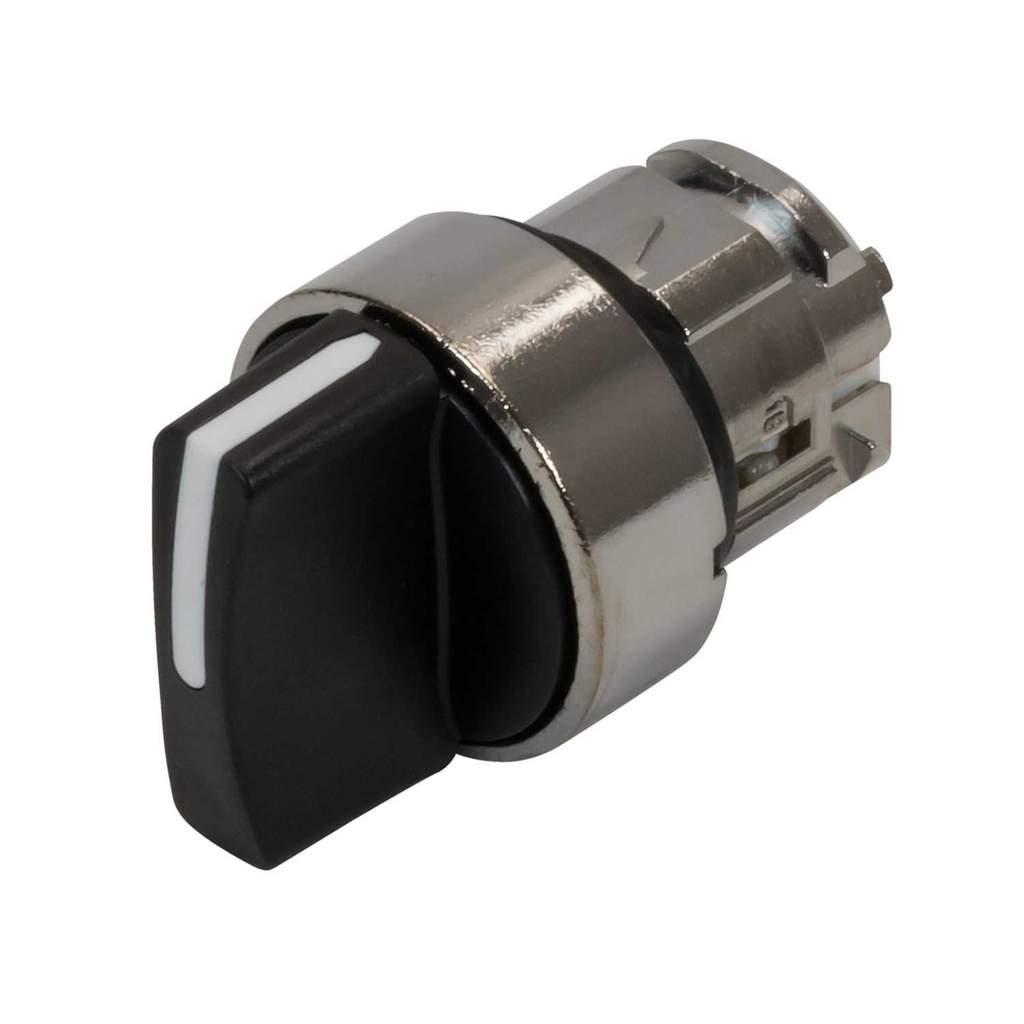

Schneider Harmony XB4 3 Position Spring Return from Right Selector Switch Head Black
Part Number: ZB4BD8
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 position switch head that operates with spring return from right to centre mechanism
- Black standard handle with a chromium plated metal bezel
- Metal bezel making it ideal for applications requiring high impact and vibration resistance
- For installation in standard 22.5mm diameter panel cut-outs
- Impact, dust, water and vibration resistant
- Colour
- Black
- Cut Out
- 22.5mm
- Depth
- 44mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29 mm x (D)44 mm
- Finish
- Chromium Plated
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP69
- Legend
- None
- Material
- Metal, Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Number Of Positions
- 3
- Operation Type
- Spring Return to Centre
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- IEC 60947-1 UL 508 IEC 60947-5-5 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-5-1 CSA C22.2 No 14 JIS C8201-1
- Type
- Selector Switch Head
- Weight
- 0.045kg
- Width
- 29mm
