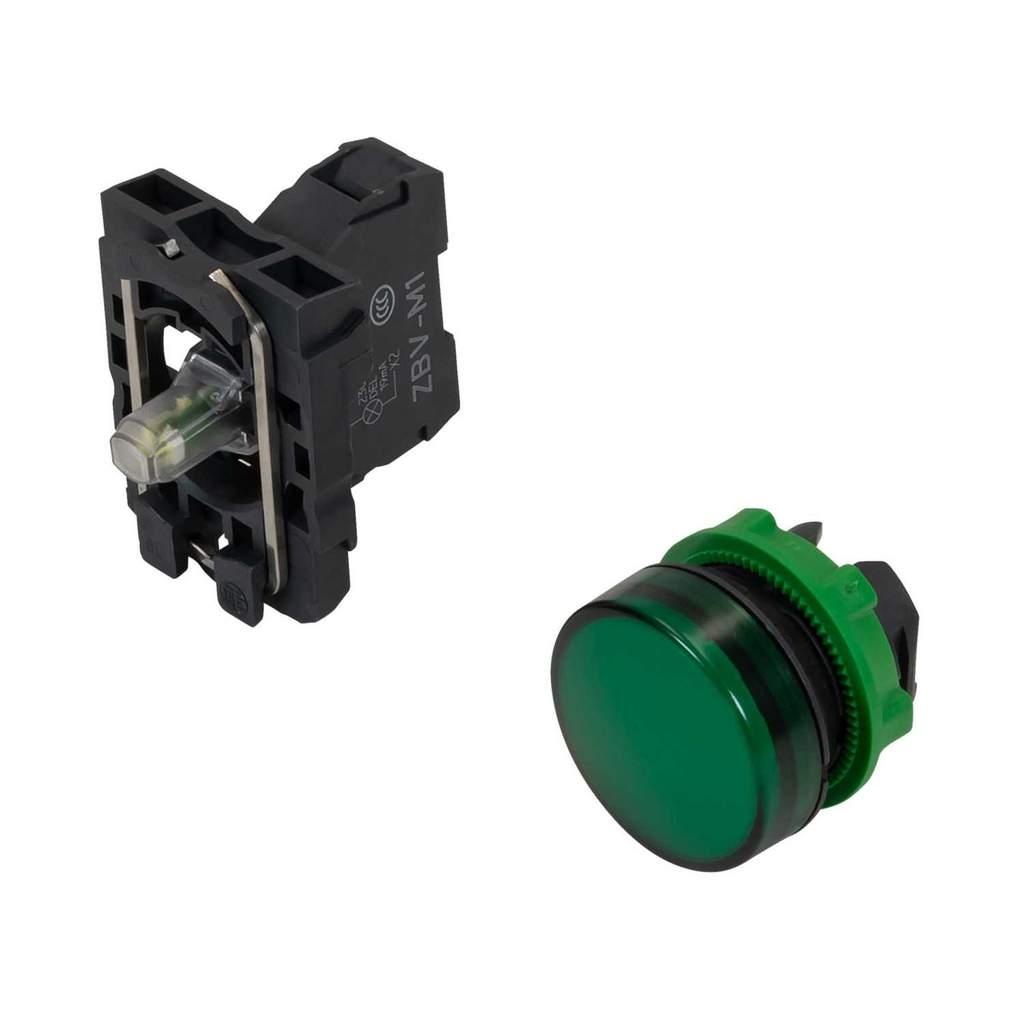

Schneider Harmony XB5 230V AC LED Complete Pilot Light Green
Part Number: XB5AVM3
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Modular 230V AC pilot light with plain lens
- Easily installed into standard 22.5mm diameter cut-outs
- Impact, dust, water and vibration resistant
- Long lasting LED
- Colour
- Green
- Cut Out
- 22.5mm
- Depth
- 54mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)30 mm x (D)54 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Head Type
- Standard
- Illuminated
- Yes
- Ip Rating
- IP66 / IP67 / IP69
- Lamp Included
- Yes
- Lens Colour
- Green
- Light Source
- Integral LED
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Packaging Types
- Each
- Product Range
- Harmony XB5
- Standards
- CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-1 IEC 60947-5-4 UL 508 JIS C8201-1
- Storage Temperature Range
- -40 - 70°C
- Type
- Pilot Light
- Voltage Rating
- 230V AC
- Weight
- 0.037kg
- Width
- 30mm
