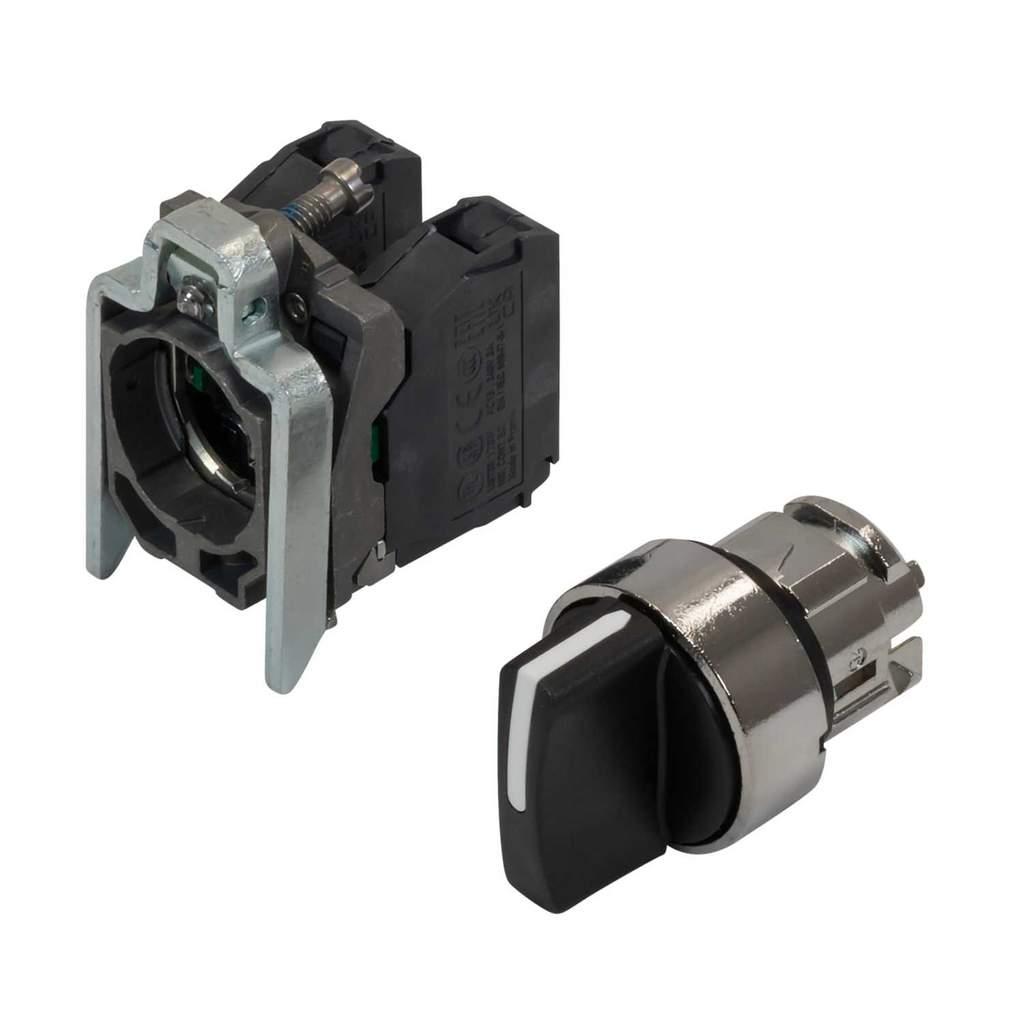

Schneider Harmony XB4 3 Position 2NO Metal Bezel Stay Put Selector Switch Black
Part Number: XB4BD33
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 position switch with maintained mechanism
- Black standard handle with a chromium plated metal bezel
- 2 normally open slow break contact
- Easily installed into standard 22.5mm diameter cut-outs and connected to control circuits with simple screw-clamp connections
- Impact, dust, water and vibration resistant
- Colour
- Black
- Contact Configuration
- 2 NO
- Cut Out
- 22.5mm
- Depth
- 68mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)30 mm x (D)68 mm
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP69
- Legend
- None
- Material
- Metal, Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Number Of Positions
- 3
- Operation Type
- Stay Put
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Storage Temperature Range
- -40 - 70°C
- Supplied With
- Fixing Collar and Contact Block
- Type
- Selector Switch
- Weight
- 0.105kg
- Width
- 30mm
