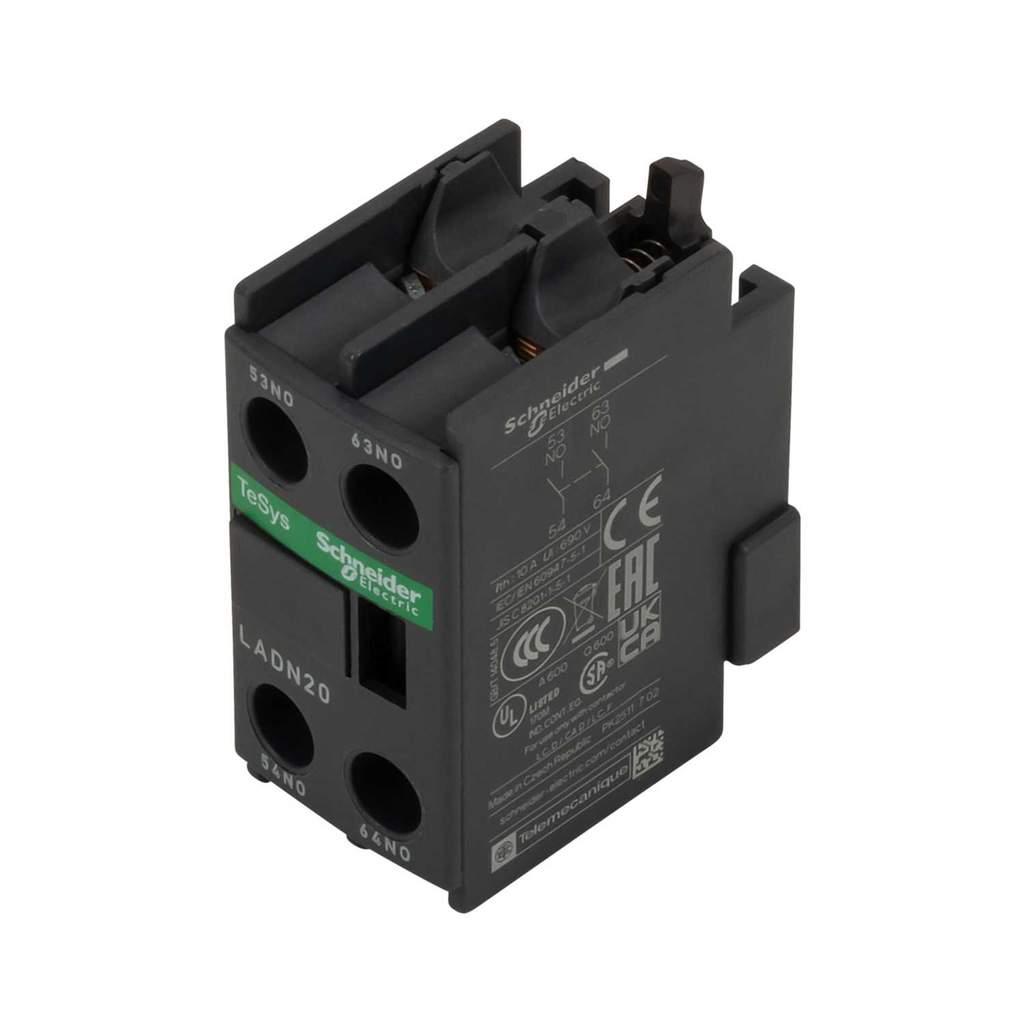

Schneider 2NO Front Mount Auxiliary Contact Block TeSys D
Part Number: LADN20
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Auxiliary contact block, for contactors LC1D, LC1F and control relays
- Provides 2NO contacts (NC mirror certified) rated up to 10A/690V AC
- Connection by screw clamp terminals, clip-on front mounting
- Colour
- Black/Green
- Contact Configuration
- 2 NO
- Depth
- 42mm
- Dimensions
- (H)48 mm x (W)26 mm x (D)42 mm
- Guarantee
- 18 Months
- Height
- 48mm
- Material
- Plastic
- Mounting
- Front
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN/IEC 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ
- Suitable For
- LC1D, LC1F and Control Relays
- Type
- Auxiliary Contact Block
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.025kg
- Width
- 26mm
