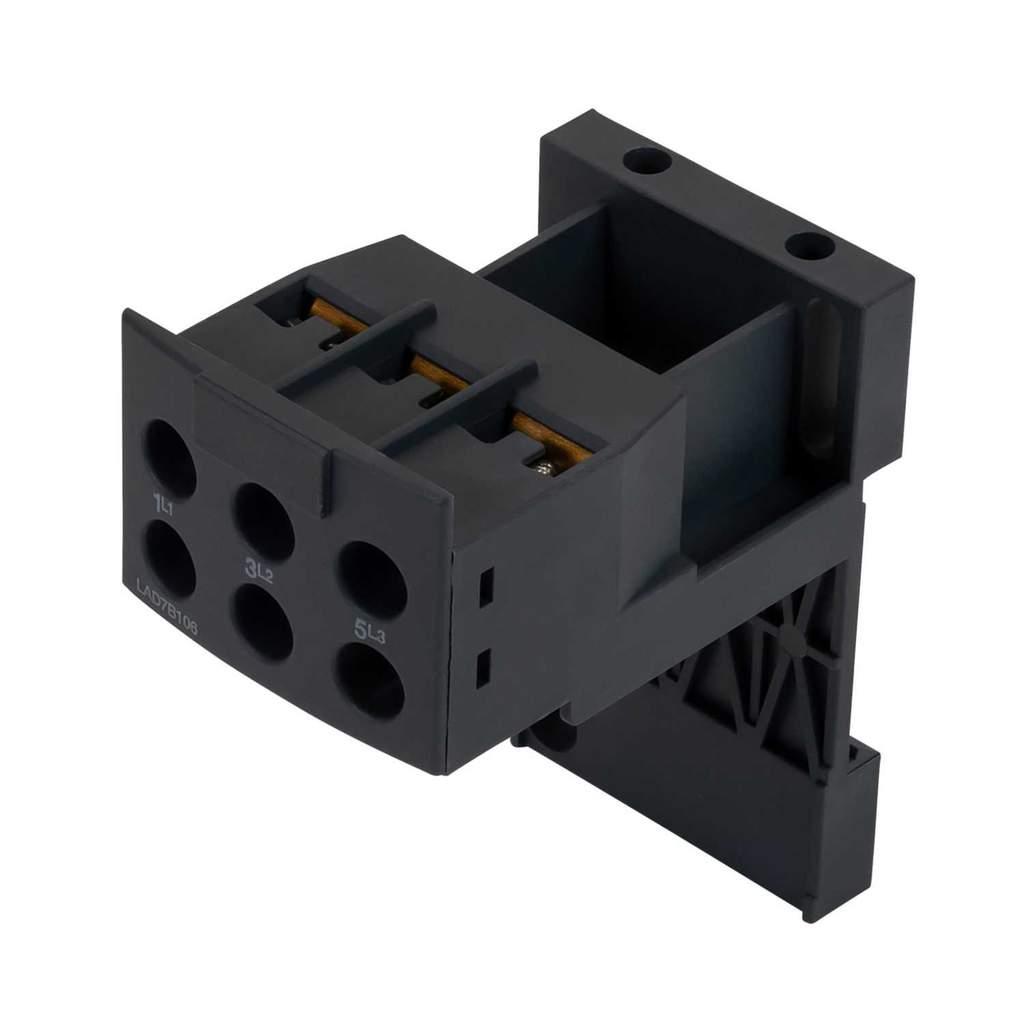

Schneider Adapter Terminal Block for TeSys Overload Relays
Part Number: LAD7B106
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- LRD terminal block for mounting of thermal overload relays LRD01-D35, LR3D01-D35 and electronic over current relays LR97D
- Used for a separate mounting between overload relay and contactor
- Provides top connections with screw clamp terminals, DIN rail mounted or fixing by screws
- Colour
- Black
- Depth
- 80mm
- Dimensions
- (H)85 mm x (W)45 mm x (D)80 mm
- Guarantee
- 18 Months
- Height
- 85mm
- Material
- Plastic
- Packaging Types
- Each
- Product Range
- TeSys D
- Suitable For
- LRD01-D35, LR3D01-D35, LR97D
- Type
- Overload Mounting Block
- Weight
- 0.082kg
- Width
- 45mm
