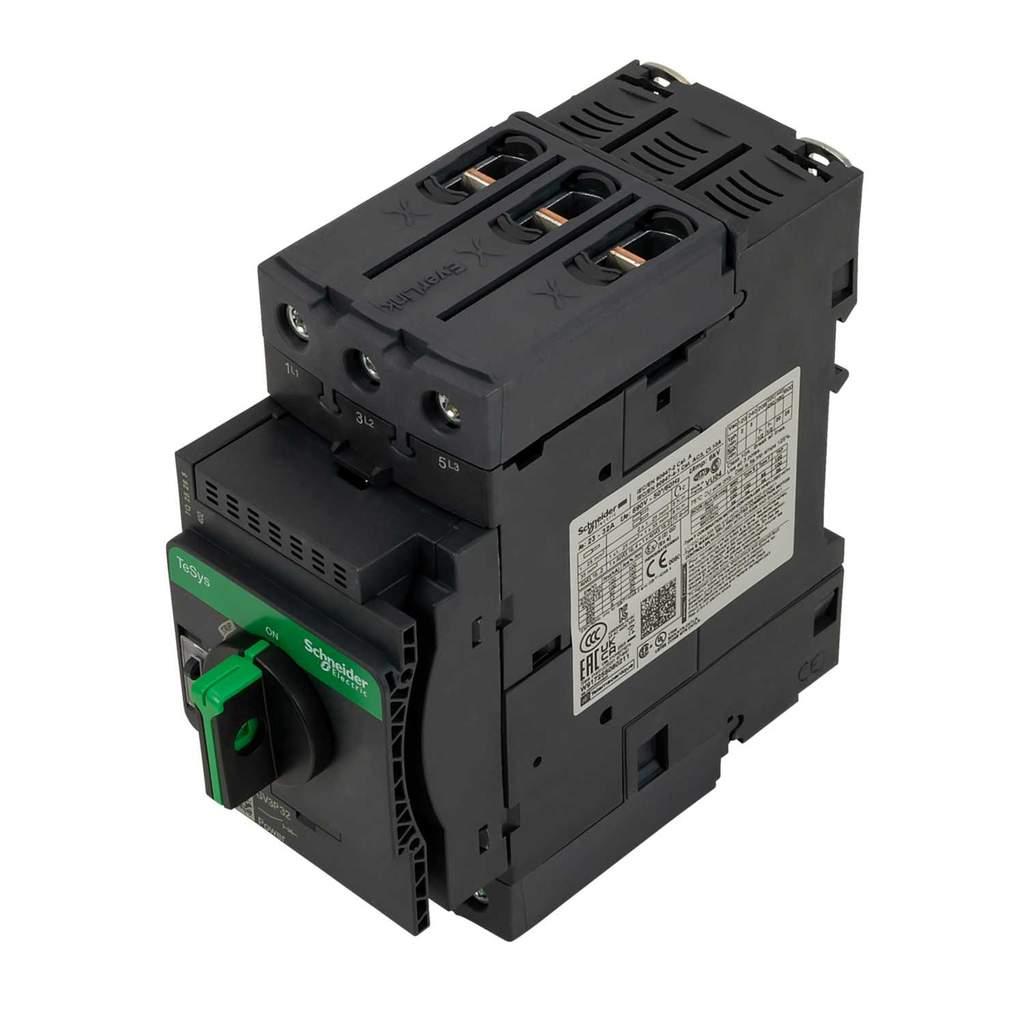

Schneider TeSys GV3 23-32A 3 Pole Rotary Handle Motor Circuit Breaker
Part Number: GV3P32
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Motor circuit breaker for 3-phase motor applications
- Thermal-magnetic protection, magnetic tripping at 14xIn
- DIN rail or panel mounting
- Can be mounted vertical or horizontal
- Connection by Everlink BTR screw terminals
- Start-stop control by rotary handle
- Colour
- Dark Grey
- Current Rating
- 32A
- Depth
- 136mm
- Dimensions
- (H)132 mm x (W)55 mm x (D)136 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 132mm
- IP Rating
- IP20
- Motor Power Ratingat415 V
- 15kW
- Mounting
- DIN Rail or Panel Mount
- Number Of Poles
- 3 Pole
- Overload Rating
- 23 - 32A
- Packaging Types
- Each
- Product Range
- TeSys GV3
- Short Circuit Rating
- 100kA
- Standards
- EN/IEC 60947-2 EN/IEC 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
- Type
- Motor Circuit Breaker
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 415V AC
- Weight
- 1.002kg
- Width
- 55mm
