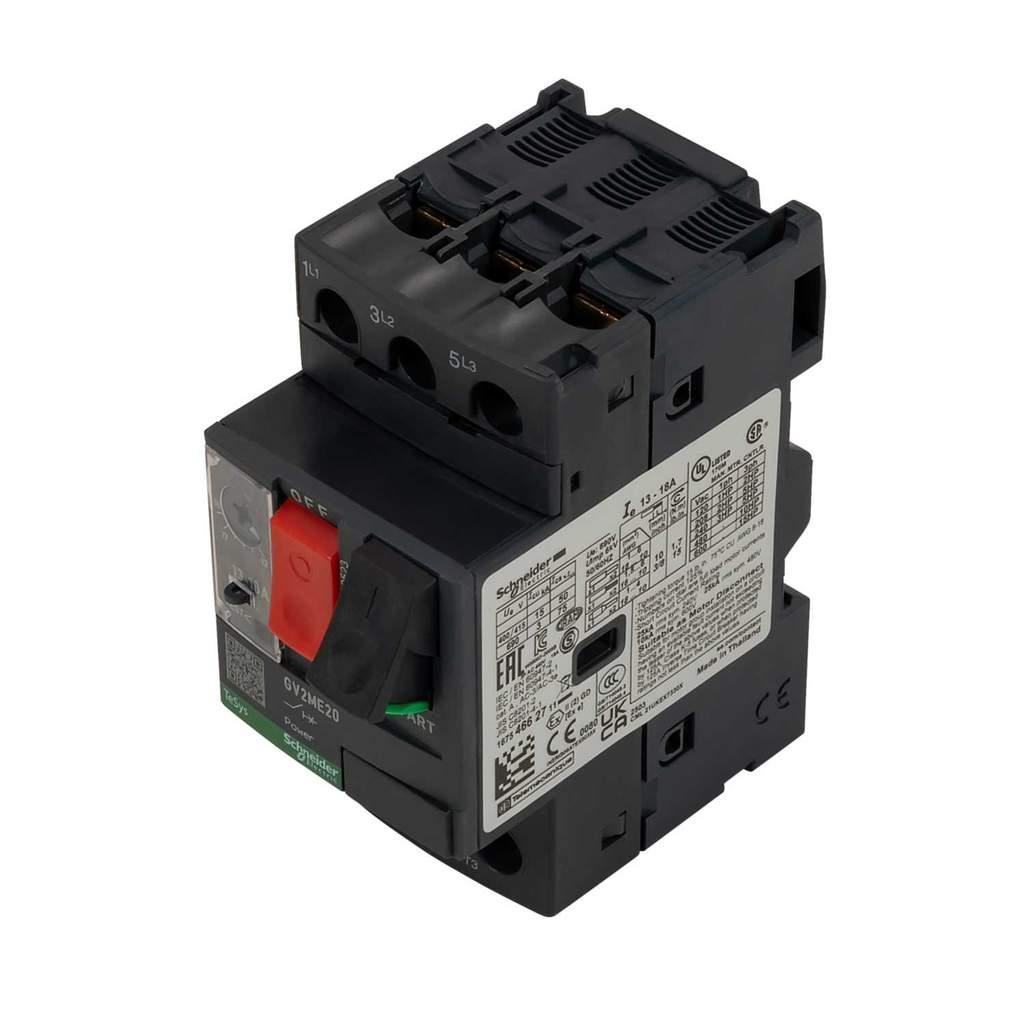

Schneider TeSys GV2 13-18A 3 Pole Button Control Motor Circuit Breaker
Part Number: GV2ME20
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Motor circuit breaker for 3-phase motor applications
- Thermal-magnetic protection, magnetic tripping at 13xIn
- DIN rail or panel mounting
- Can be mounted vertical or horizontal
- Screw clamp terminals
- Start-stop control by pushbutton
- Colour
- Dark Grey
- Current Rating
- 18A
- Depth
- 78.5mm
- Dimensions
- (H)89 mm x (W)45 mm x (D)78.5 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 89mm
- IP Rating
- IP20
- Motor Power Ratingat415 V
- 7.5kW
- Mounting
- DIN Rail or Panel Mount
- Number Of Poles
- 3 Pole
- Overload Rating
- 13 - 18A
- Packaging Types
- Each
- Product Range
- TeSys GV2
- Short Circuit Rating
- 100kA
- Standards
- EN/IEC 60947-2 EN/IEC 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
- Type
- Motor Circuit Breaker
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 415V AC
- Weight
- 0.275kg
- Width
- 45mm
