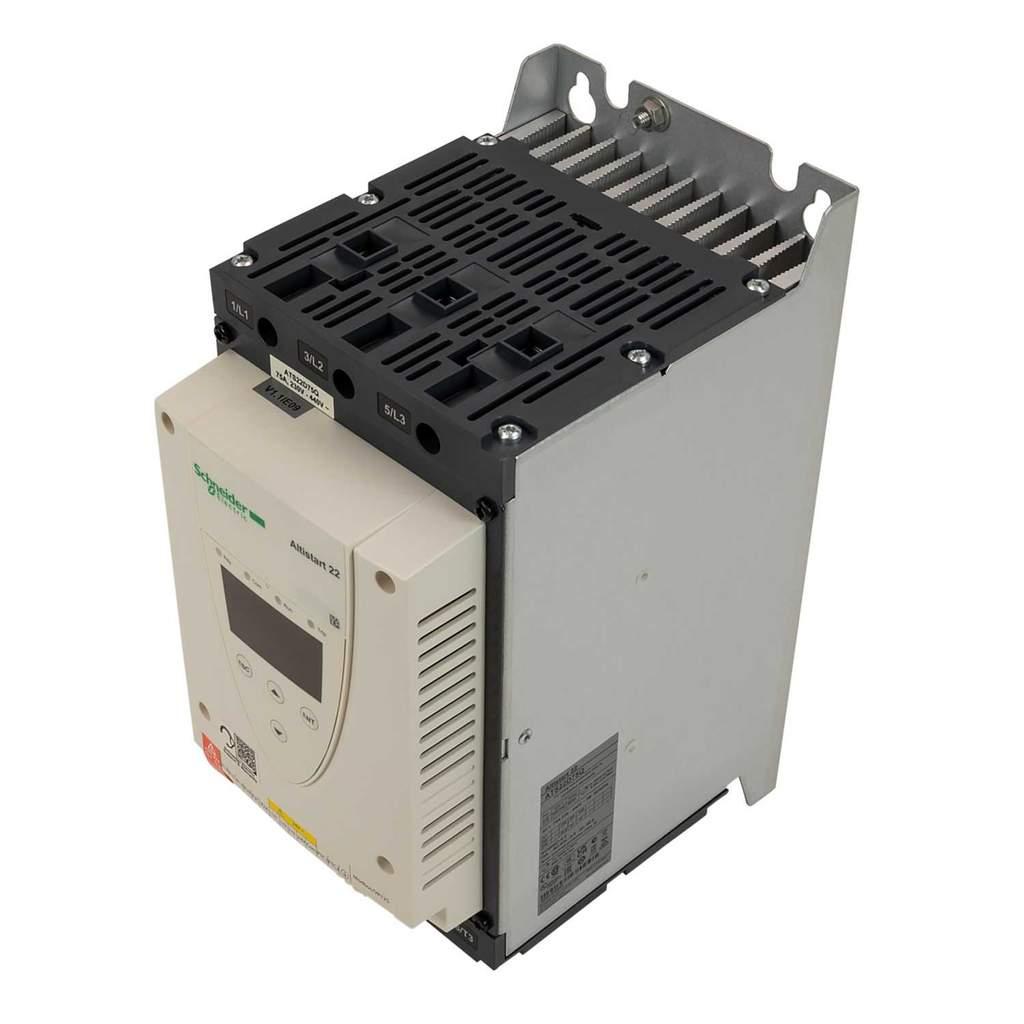

Schneider Altistart 22 230V(18.5kW) or 400V-440V(37kW) Soft Starter for Asynchronous Motor
Part Number: ATS22D75Q
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Soft starter that can feed 3-phase asynchronous motors in supply line or delta connection
- Designed to enable smooth start for simple and complex machines
- Simple set up and operation with 4 light LED's, 4 navigation keys and a 4 digit display
- Integrated bypass that reduces noise and decreases heat dissipation
- Start with torque control (current limited to 3.5 In)
- Supply voltage 230V to 440V AC
- Control circuit voltage 230V AC
- Current Rating
- 75A
- Depth
- 207mm
- Dimensions
- (H)295 mm x (W)145 mm x (D)207 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 295mm
- IP Rating
- IP20
- Mounting
- Wall or Panel Mount
- Packaging Types
- Each
- Product Range
- Altistart 22
- Standards
- IEC 60947-4-2
- Type
- Soft Starter
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 8.216kg
- Width
- 145mm
