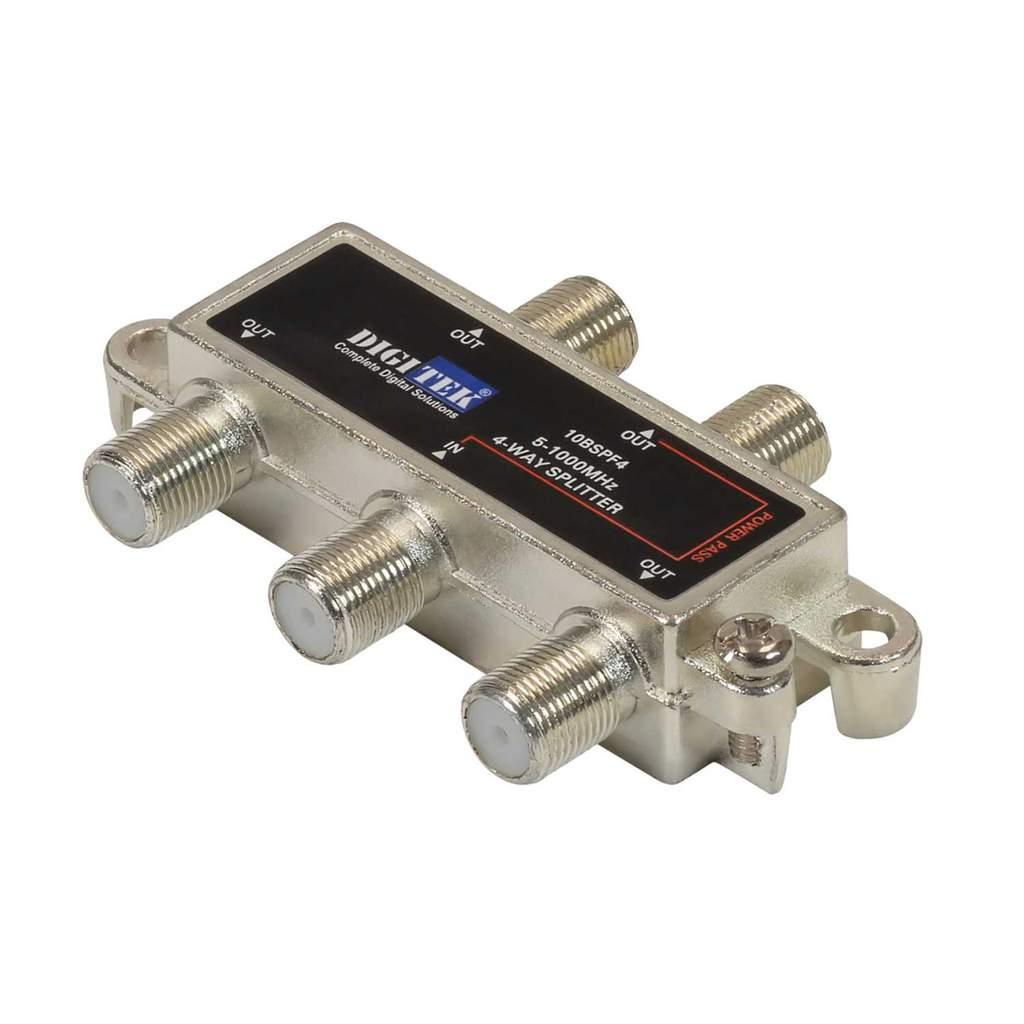

Digitek 4 Way 5-1000MHz F-Type 1 Leg Power Pass Splitter
Part Number: 10BSPF4
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Zinc die-cast housing, tin-plated
- Light weight and compact size
- Easy installation with two edge hole sites
- Housing earth point
- Screening factor: 5-1000MHz ≥100dB
- Micro-strip circuit design and perfect performance index
- All ports F-type female connector, 75Ω
- Colour
- Silver
- Depth
- 17mm
- Dimensions
- (H)50 mm x (W)75 mm x (D)17 mm
- Finish
- Tin Plated
- Guarantee
- 1 Year
- Height
- 50mm
- Material
- Zinc Die-Cast
- Mounting
- Surface
- Number Of Ways
- 4
- Packaging Types
- Each
- Product Range
- 1 Leg Power Pass
- Type
- Splitter
- Weight
- 0.049kg
- Width
- 75mm
