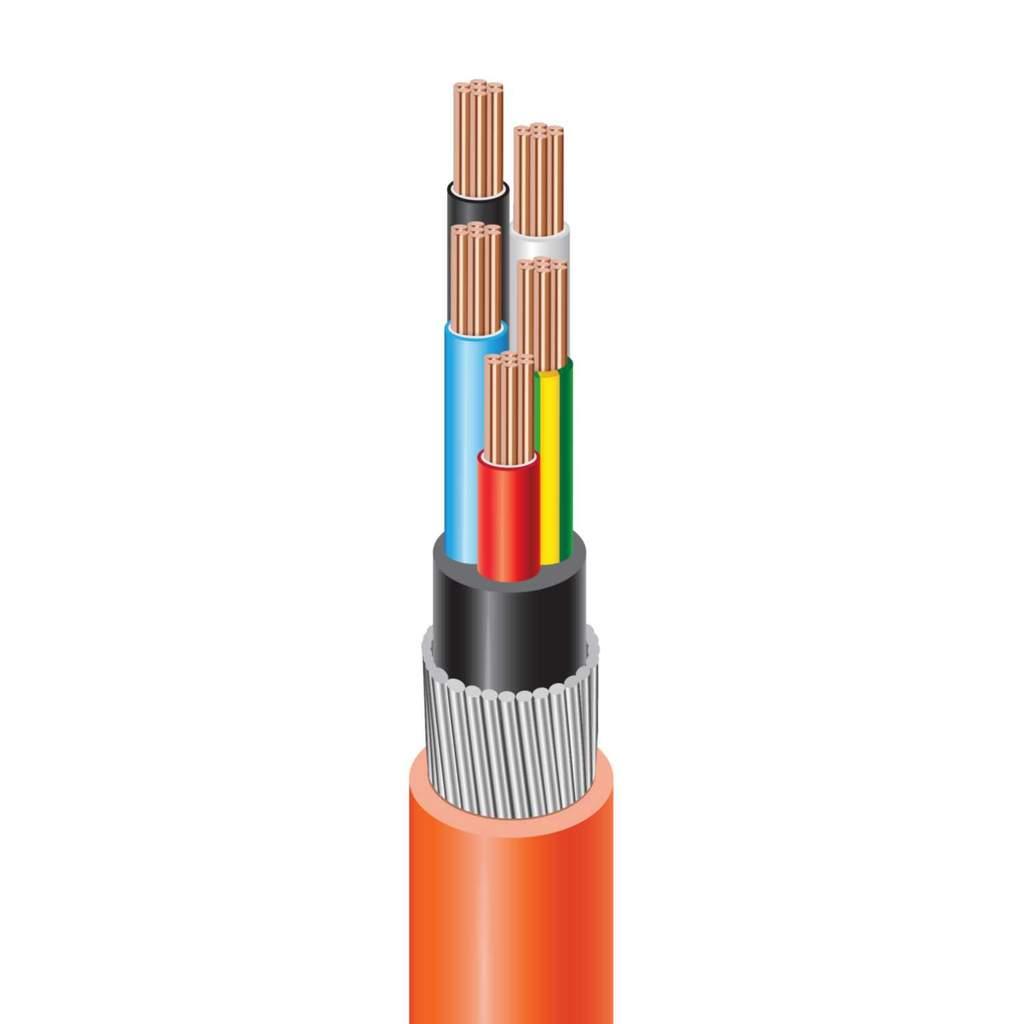

Electra 6.0mm² 4 Core and Earth SWA Orange Circular 0.6/1kV V90 (100m Drum)
Part Number: SRC4060ESWA
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For mains, sub-mains and sub-circuits
- Unenclosed, enclosed in conduit, buried direct or underground ducts for buildings and industrial projects
- Galvanised steel wire armoured for higher mechanical protection
- Suitable for glanding
- V90 PVC insulation
- Plain annealed copper conductors
- Red, white, blue, black and green/yellow PVC insulated cores
- Greenstar approved
- Armour Type
- SWA [Galvanised Steel Wires]
- Colour
- Orange
- Conductor Size
- 6.0mm²
- Dimensions
- (L)100 m
- External Diameter
- 21.1mm
- Finish
- Plain Annealed
- Guarantee
- 1 Year
- Insulation Type
- V90 PVC
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 4 E
- Online Search Priority
- 1
- Packaging Types
- Drum
- Product Range
- SRC SWA
- Sheath
- 5V-90 PVC
- Sheath Thickness
- 1.8mm
- Standards
- AS/NZS 5000.1 AS/NZS1125 AS/NZS 3808
- Type
- Orange Circular
- Unspsc V18
- 26121615
- Unspsc V24
- 26121615
- Voltage Rating
- 600V 1000V
- Weight
- 0.92kg
