Brooks Surface Mount Relay Base with Battery Back-up
Part Number: EIB128RBU
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

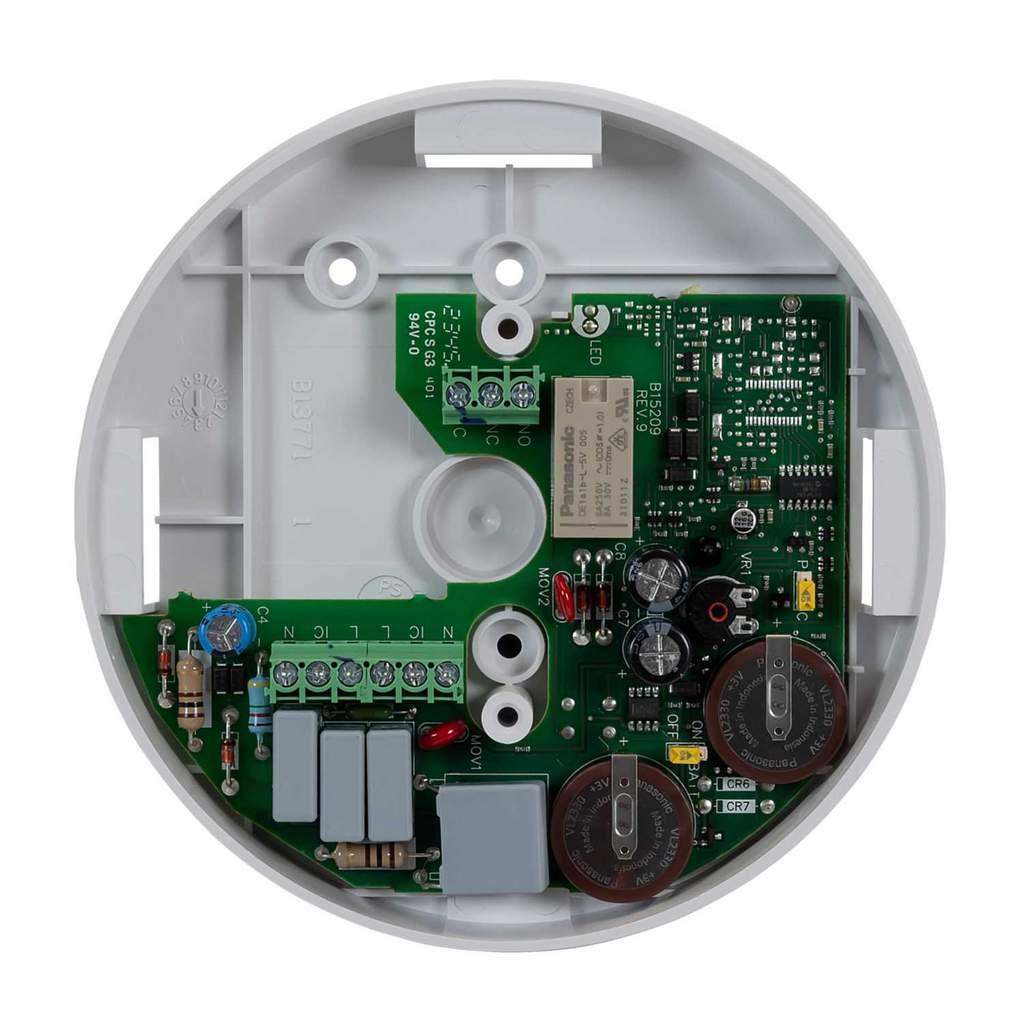

- Smoke detector base with integral relay that is activated when the detector is triggered
- For use with 3000, 140RC and 160e Series alarms
- The relay contacts are isolated and are rated at 250VAC, 5A resistive and can be used for signalling, turning on lights and sirens or activating door release devices etc.
- Rechargeable lithium battery back-up
- Supplied with a plastic lid that allows the unit to be sited remotely to the alarm, and will also allow non Easi-Fit alarms to be connected to the EIB128RBU
- Battery Type
- Lithium
- Colour
- White
- Depth
- 21mm
- Diameter
- 141mm
- Dimensions
- (Dia)141 mm x (D)21 mm
- Guarantee
- 5 Years
- Material
- UL94VO Flame Retardant Plastic
- Maximum Operating Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- EIB Series
- Shape
- Round
- Standards
- AS3100
- Suitable For
- 3000, 140RC and 160e Series Alarms
- Type
- Smoke Detector Base
- Unspsc V18
- 46191501
- Unspsc V24
- 46191501
- Voltage Rating
- 230V AC
- Weight
- 0.224kg
