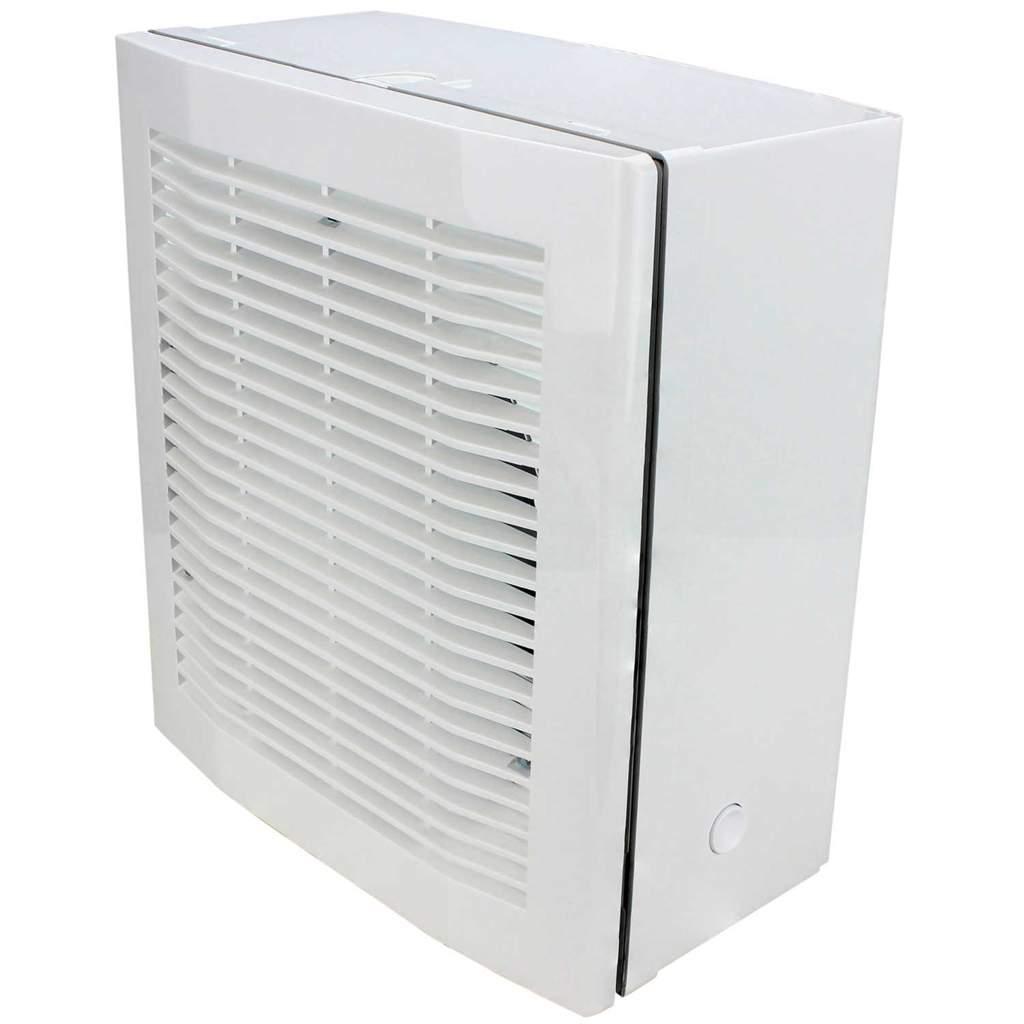

Fantech 230mm Wall or Window Mounted Exhaust Fan White
Part Number: FANHV-230AE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Wall or window mounted and is suitable for a wide range of applications
- Electric shutters prevent outside air entering building when fan is switched off
- Tough and long lasting ABS plastic
- For wall mounting a kit of threaded wall rods and sleeves can be supplied as an optional extra
- Caters for walls ranging in thickness from 25 to 300mm
- Rated continuous run
- Suitable for supply or exhaust applications
- Airflow Cubic Metresper Hour
- 600 m³/h
- Automatic Shutter
- Yes
- Colour
- White
- Decibel Rating
- 43 dB(A) @ 3m
- Depth
- 142mm
- Dimensions
- (H)325 mm x (W)300 mm x (D)142 mm
- Guarantee
- 5 Years
- Height
- 325mm
- Hole Size
- 259mm
- Ip Rating
- IPX4
- Material
- ABS Plastic
- Mounting
- Window / Wall
- Packaging Types
- Each
- Power Rating
- 34W
- Product Range
- Stylvent
- Standards
- Air Flow to ISO5801:1997; Noise to BS848:Part 2, 1985
- Suitable For
- Walls 3 - 25mm (25mm to 300mm Thick Require Wall Rods)
- Type
- Wall/Window Fan
- Voltage Rating
- 230V AC
- Weight
- 3.875kg
- Width
- 300mm
