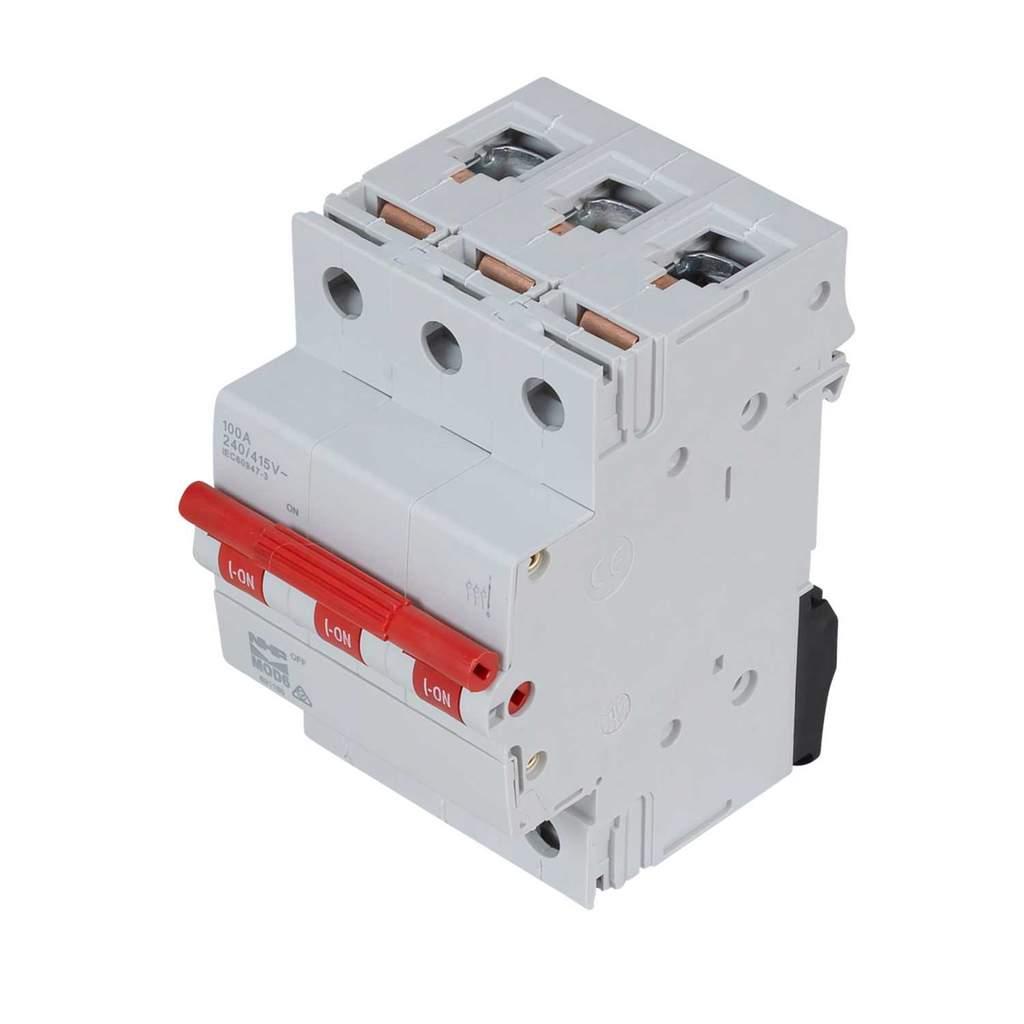

NHP 100A 3 Pole Red Toggle Main Switch MOD6 White
Part Number: MOD6MS3100
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Three phase switch disconnector
- Red toggle for easy identification of isolator
- DIN rail mounted
- Maximum cable size 50mm²
- Colour
- White
- Current Rating
- 100A
- Depth
- 76mm
- Dimensions
- (H)86 mm x (W)54 mm x (D)76 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 86mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 3
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- MOD6
- Standards
- AS/NZS 60947-3
- Terminal Capacity
- 50mm²
- Type
- Main Switch
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 415V AC
- Weight
- 0.285kg
- Width
- 54mm
