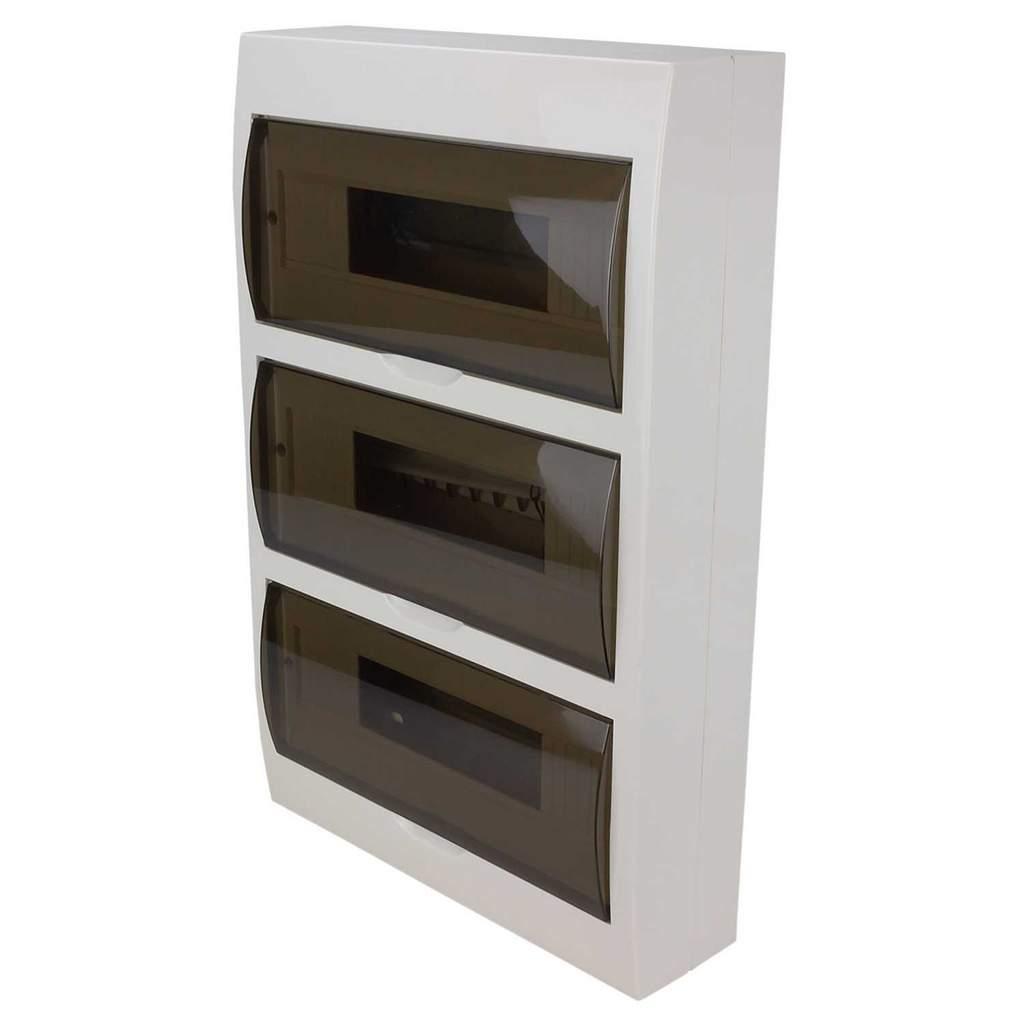

NHP 36 Way Surface Mount Loadcentre
Part Number: CSB36ST
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 36 module switchboard enclosure
- 3 rows of 12 modules complete with single phase busbar to suit
- Removable neutral and earth bars rated at 100A
- Neutral split 12/12/12 and 36 way earth
- Transparent doors, hinged at the top
- Colour
- White
- Current Rating
- 100A
- Depth
- 102mm
- Dimensions
- (H)473 mm x (W)306 mm x (D)102 mm
- Guarantee
- 1 Year
- Height
- 473mm
- Material
- Body ABS, Transparent Door Polycarbonate
- Mounting
- Surface
- Number Of Modules
- 36
- Packaging Types
- Each
- Product Range
- CSB
- Standards
- AS/NZS 3439.3
- Type
- Loadcentre
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Weight
- 2.51kg
- Width
- 306mm
