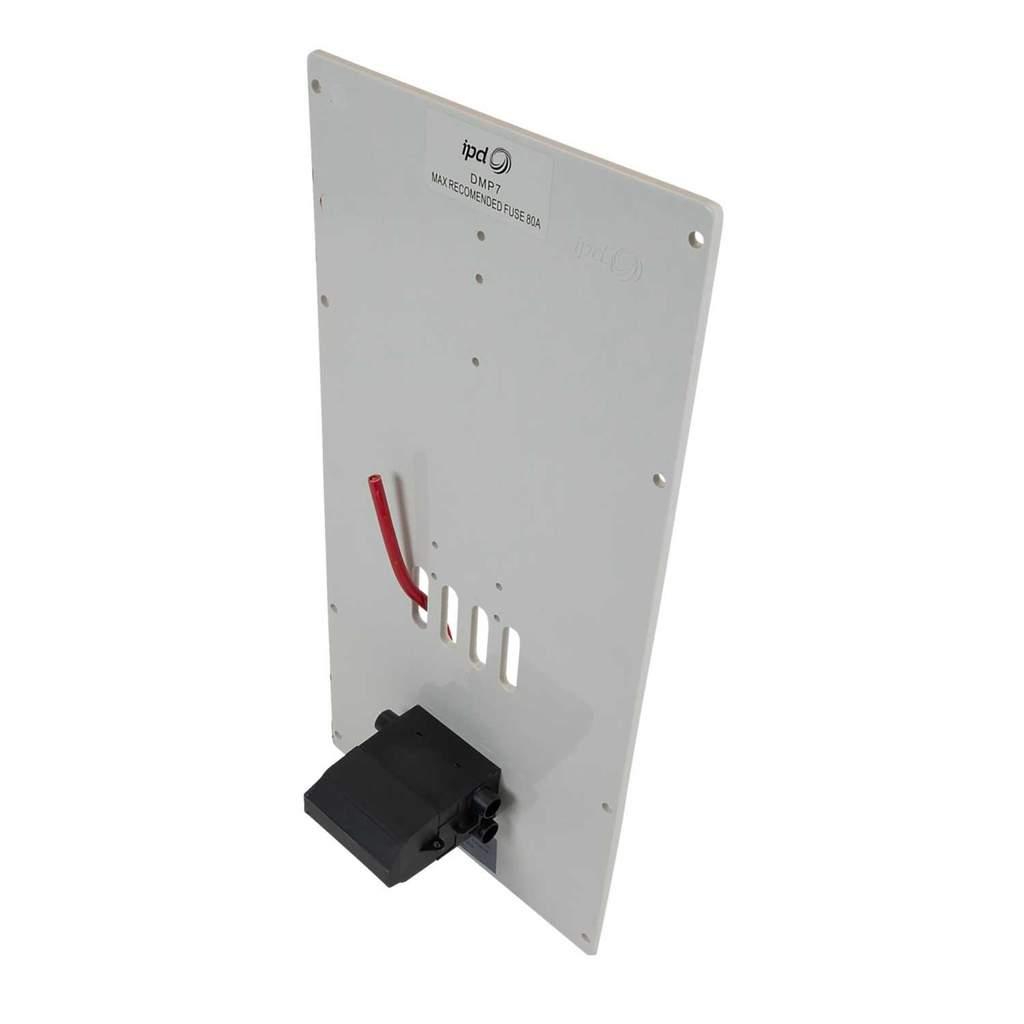

IPD WA Fused Single Phase Meter Panel
Part Number: DMP7
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Designed to suit Western Power meter enclosures
- S7 fuse fitting made from flame retardant thermoplastic
- Mounting panel made to thermo-setting DMC material
- Complete with 16mm² cable fitted
- Rated current capacity of 100A
- Supports up to 500V voltage
- Western Australia use only
- Current Rating
- 100A
- Dimensions
- (H)450 mm x (W)225 mm
- Guarantee
- 1 Year
- Height
- 450mm
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- DMP
- Standards
- AS60269
- Type
- Fused Meter Panel
- Voltage Rating
- 500V
- Weight
- 1.28kg
- Width
- 225mm
