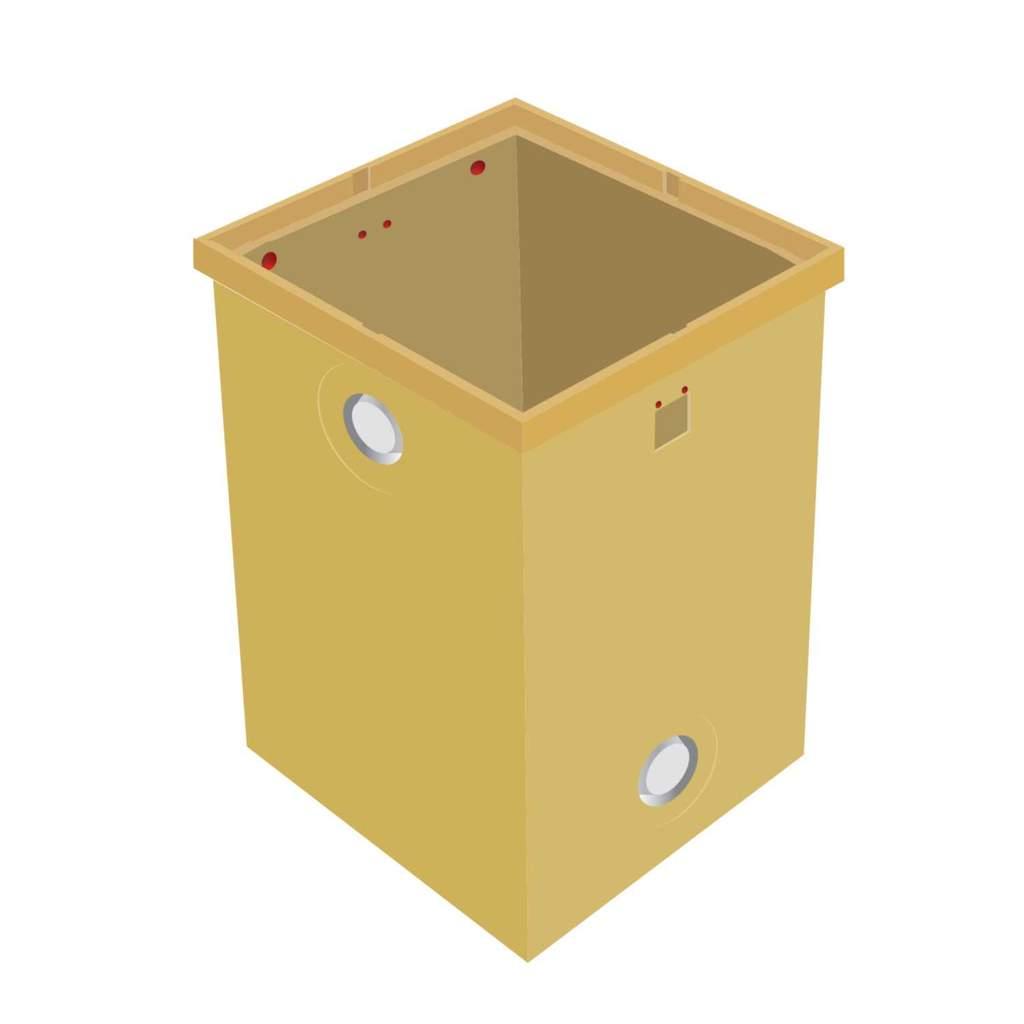

ACO Type 66H Polycrete Cable Pit
Part Number: 75226
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Underground enclosure that houses and protects electrical cables, ensuring efficient and safe distribution of power, data, and telecommunications
- Polycrete pits have excellent insulation properties, high mechanical strengths, chemical resistance and zero water absorption, which makes them ideal as electrical and communications enclosures
- Holes can be cut anywhere on side walls
- Maximum number of holes recommended per pit is limited by conduit quantity and size (contact ACO for guidance if needed)
- Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar
- Colour
- Cream
- Depth
- 918mm
- Dimensions
- (L)663 mm x (W)663 mm x (D)918 mm
- Guarantee
- 1 Year
- Length
- 663mm
- Material
- Polymer Concrete
- Packaging Types
- Each
- Product Range
- CABLEMATE
- Type
- Cable Pit
- Weight
- 90.5kg
- Width
- 663mm
