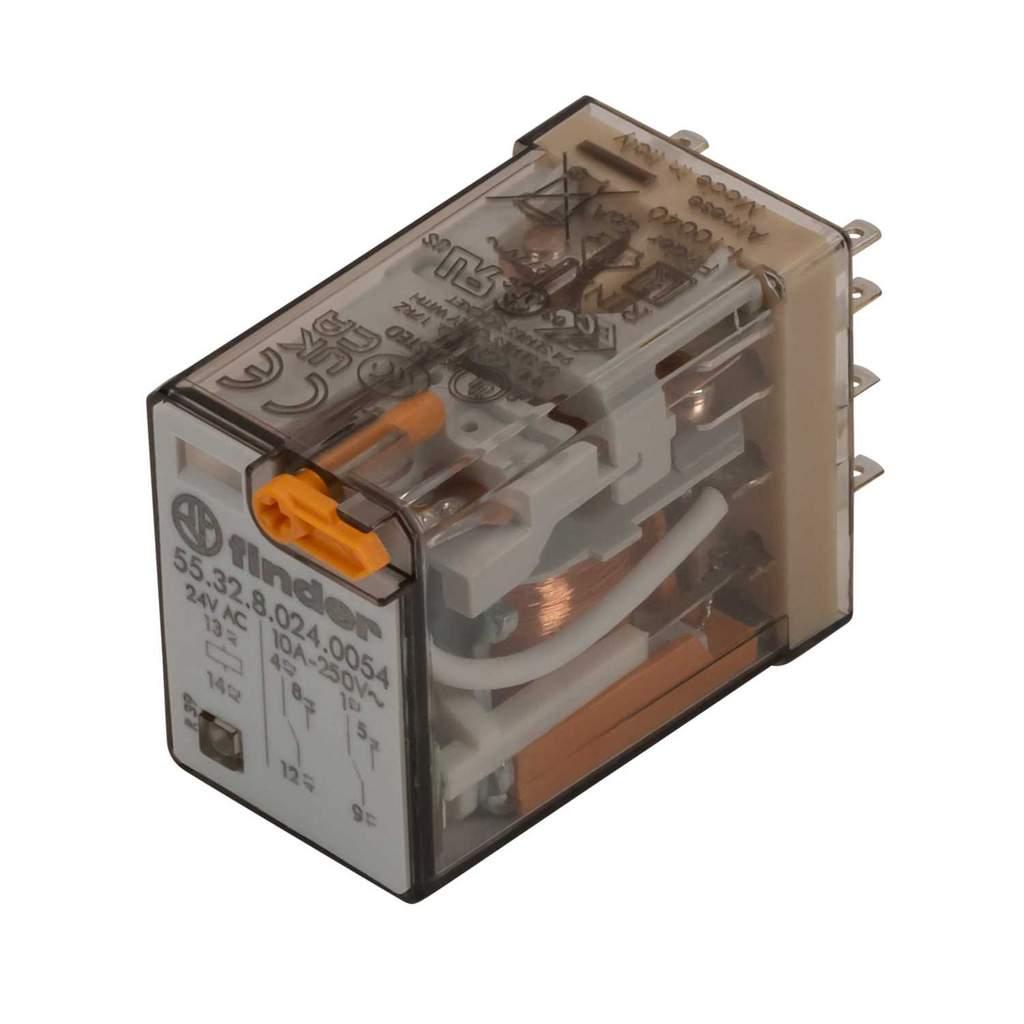

NHP 8 Pin 24V AC Coil 10A 2CO Finder 55 Series Miniature Relay
Part Number: 5532005424VAC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- General purpose miniature relay
- 2 changeover contacts
- 8 flat pins
- Plug-in connection
- Pushbutton and latch
- LED and mechanical indication
- Suits relay base 9402
- Changeover
- Yes
- Coil Voltage
- 24V AC
- Colour
- Transparent
- Contact Configuration
- 2 CO
- Current Rating
- 10A
- Depth
- 36.7mm
- Dimensions
- (H)27.7 mm x (W)20.7 mm x (D)36.7 mm
- Guarantee
- 1 Year
- Height
- 27.7mm
- Material
- Plastic
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number Of Pins
- 8
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- General Purpose Relays
- Standards
- EN 61810-1
- Type
- Switching Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V AC
- Weight
- 0.032kg
- Width
- 20.7mm
