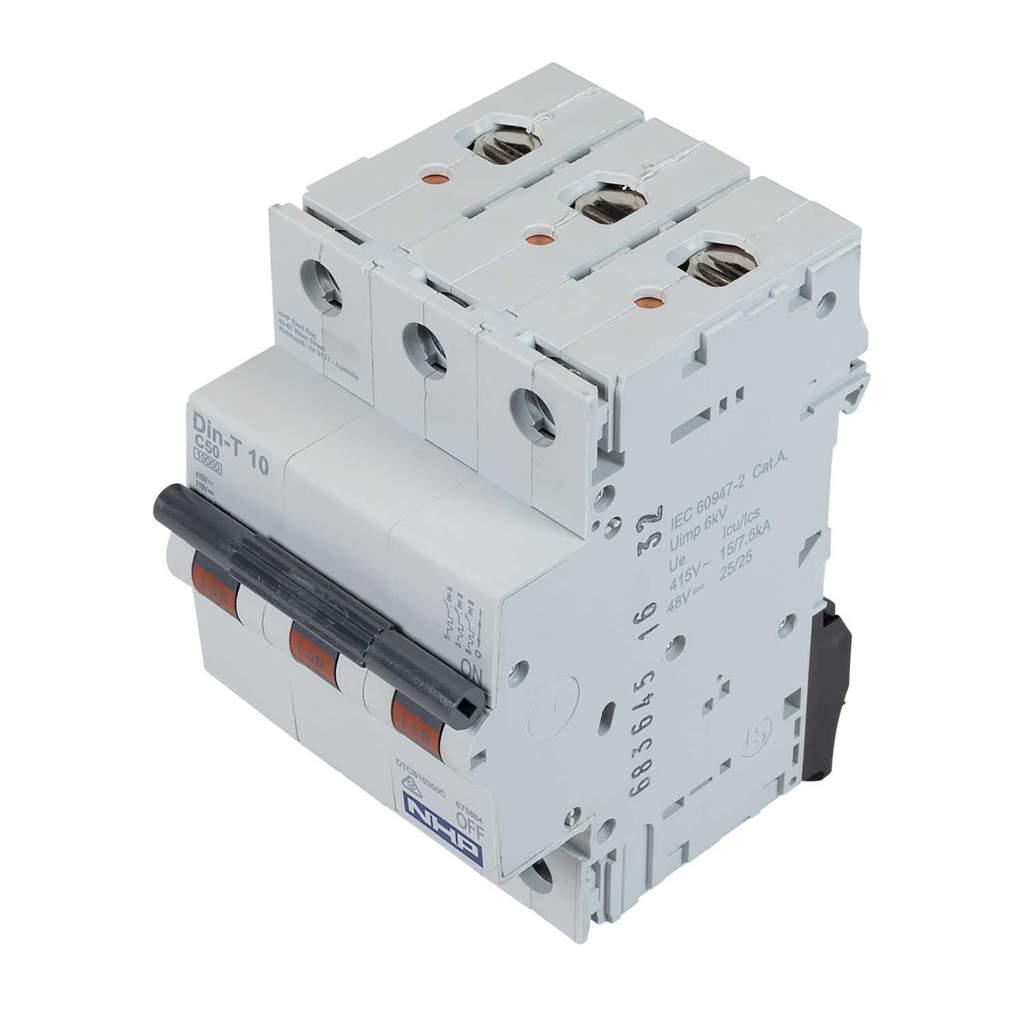

NHP 50A 3 Pole 10kA C Curve DIN-T MCB
Part Number: DTCB10350C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- 4.5 N m tightening torque on top or bottom connections
- Provision on the toggle for pad lock or seal to restrict unauthorised action
- Free tripping mechanism even if toggle is locked or sealed ON or OFF
- Fast connection pin/fork busbar comb or NC or GB busbar chassis
- Suits the Concept panelboard range
- Colour
- Grey
- Current Rating
- 50A
- Depth
- 76mm
- Dimensions
- (H)86 mm x (W)54 mm x (D)76 mm
- Guarantee
- 1 Year
- Height
- 86mm
- Incoming Terminal Capacity
- 25mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 3
- Number Of Poles
- 3 Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- DIN-T
- Short Circuit Rating
- 10kA
- Standards
- IEC 60898 IEC 60077-16-3 IEC 60947-2 IEC 60068-2 DIN 40046 UL 94 V-2 AS/NZS 3111:2009
- Tripping Characteristics
- C Curve
- Type
- Miniature Circuit Breaker
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 415V AC
- Weight
- 0.371kg
- Width
- 54mm
