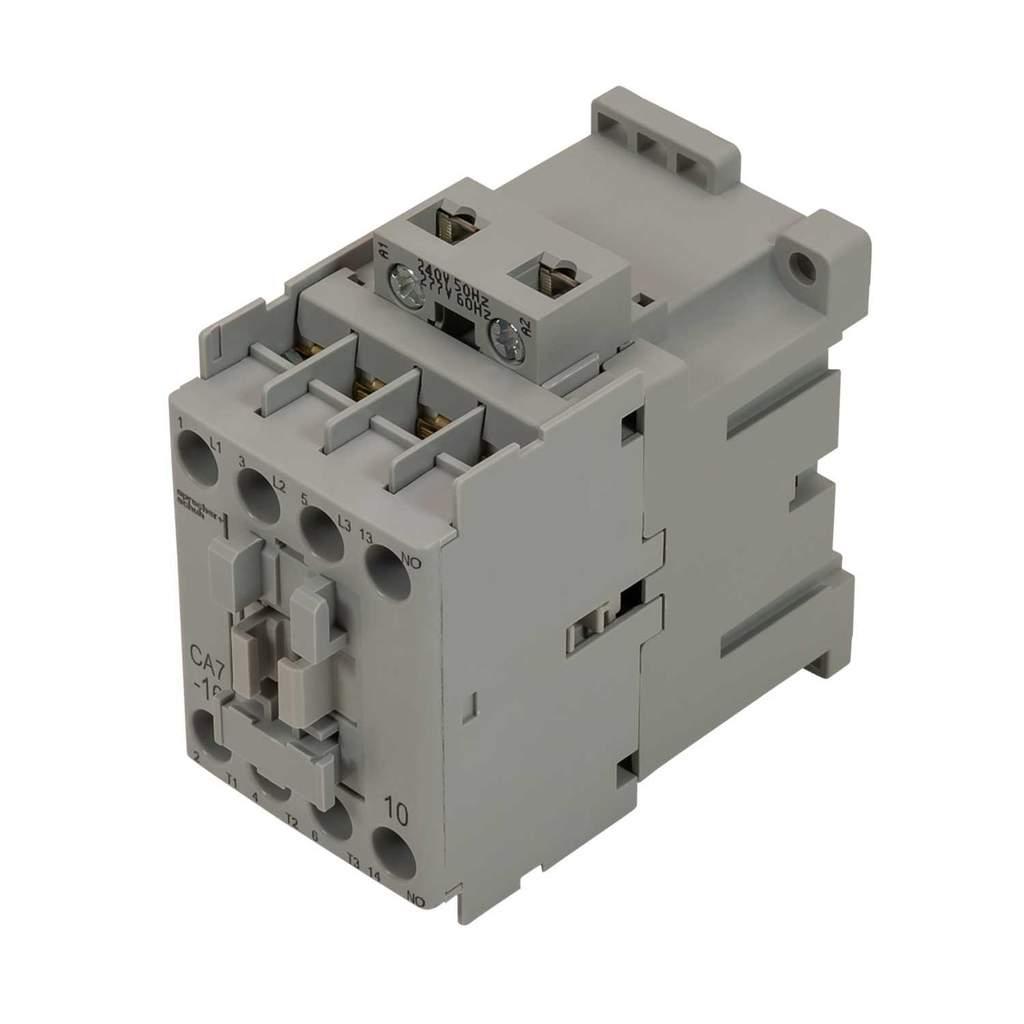

Sprecher+Schuh 7.5kW AC3 3 Pole (3NO) 240V AC Coil Contactor with 1NO Auxiliary
Part Number: CA71610240VAC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Power contactor for DOL starting
- Delivered with the coil terminals located on the line side (top) of the contactor
- When used with the KT7 Motor Circuit Controller, the coil must be reversed, so that the coil terminals are located at the load side (bottom) of the contactor
- Inbuilt auxiliary contact
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 240V AC
- Colour
- Grey
- Contact Configuration
- 3 NO
- Current Rating Ac3
- 16A
- Depth
- 86.5mm
- Dimensions
- (H)81 mm x (W)45 mm x (D)86.5 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 81mm
- IP Rating
- IP2X
- Material
- Plastic
- Mounting
- DIN Rail / Panel
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- CA7
- Standards
- IEC 60947-5-1
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 690V AC 300V DC
- Weight
- 0.366kg
- Width
- 45mm
