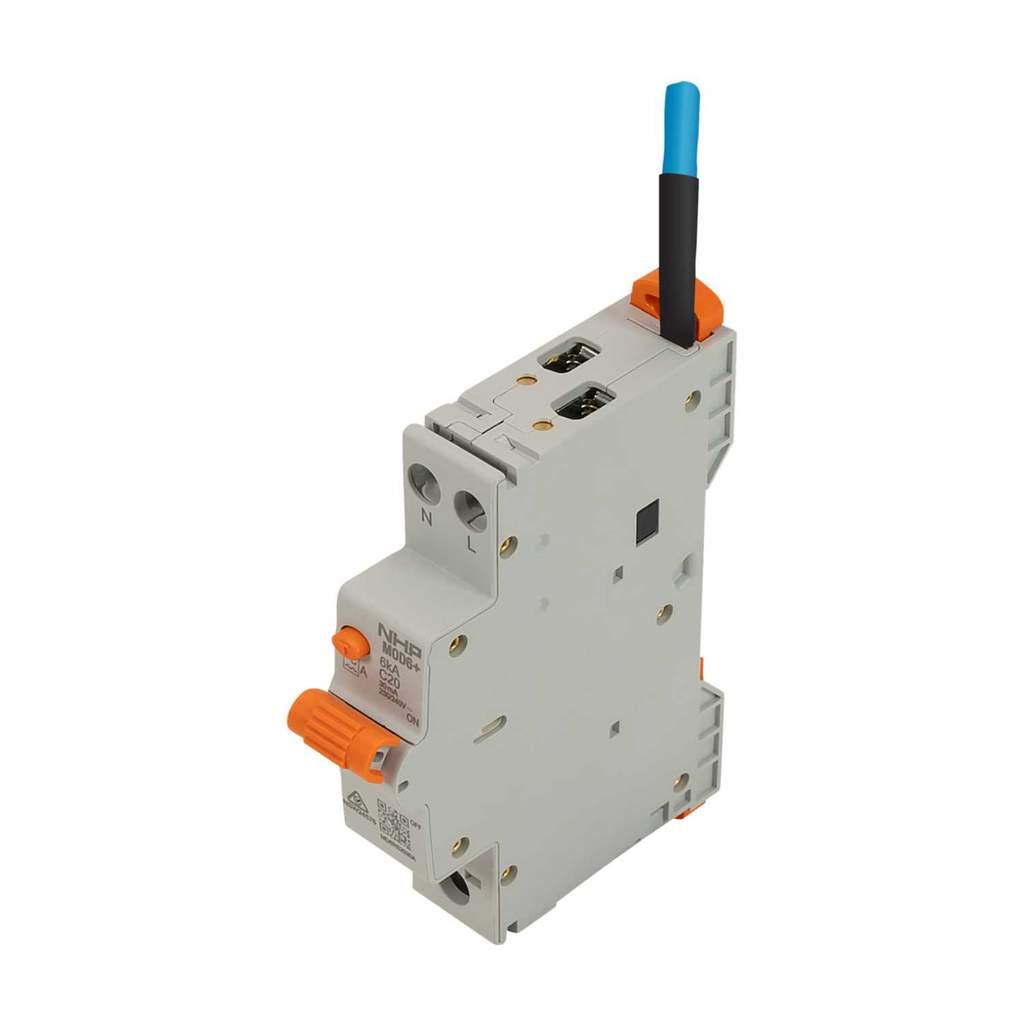

NHP 20A 1 Pole and Neutral 6kA C Curve 30mA MOD6+ RCBO
Part Number: MD6RS2030A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD in a single compact unit
- Phase and neutral are both protected
- C curve MCB function for general light and power applications
- Type A 30mA RCD function provides general personnel protection
- Includes neutral tail that saves cable and installation time
- Bottom feed
- Short body
- Suitable for use in loadcentres and distribution boards
- Colour
- Grey/Orange
- Current Rating
- 20A
- Depth
- 76mm
- Dimensions
- (H)86 mm x (W)18 mm x (D)76 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 86mm
- IP Rating
- IP40
- Incoming Terminal Capacity
- 25mm² Solid, 16mm² Flexible
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1P N
- Operating Temperature Range
- -25 - 55°C
- Outgoing Terminal Capacity
- 25mm² Solid, 16mm² Flexible
- Packaging Types
- Each
- Product Range
- MOD6
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61009.1
- Torque Settings
- Top 1.2 N m, Bottom 2 N m
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 240V AC
- Weight
- 0.171kg
- Width
- 18mm
