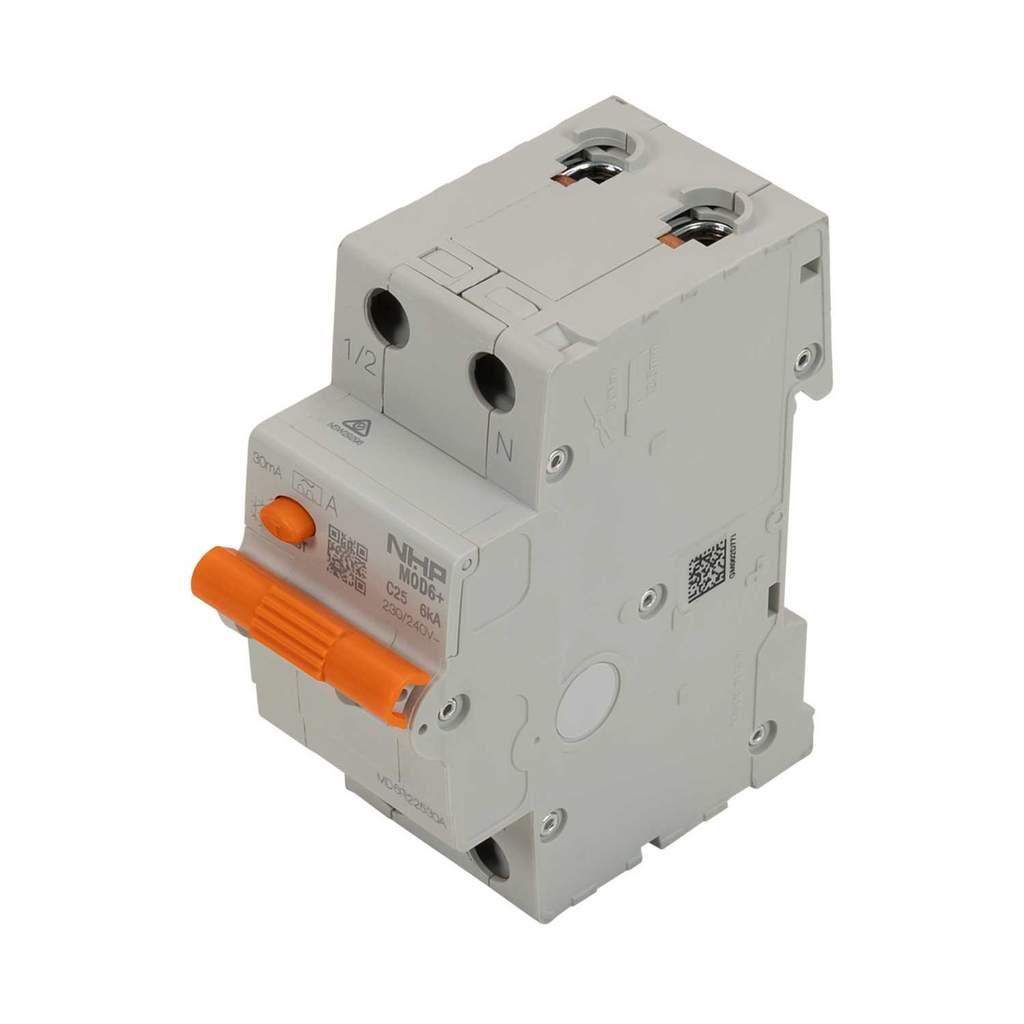

NHP 25A 2 Module 1 Pole and Neutral 6kA 30mA C Curve MOD6+ RCBO
Part Number: MD6R22530A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD
- Two module device
- Type A RCD to sense AC as well as pulsating DC currents
- 30mA sensitivity for general personnel protection
- Blue earth leakage trip indicator
- Breaks both phase and neutral conductors
- Fast connection pin/fork busbar comb
- Inbuilt test switch
- Colour
- Grey/Orange
- Current Rating
- 25A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)35 mm x (D)75 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 35mm² Rigid. 35mm² Flexible
- Ip Rating
- IP40
- Material
- Plastic
- Mounting
- Din Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P+N
- Outgoing Terminal Capacity
- 35mm² Rigid. 35mm² Flexible
- Packaging Types
- Each
- Product Range
- MOD6+
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61009
- Torque Settings
- 3.2 N m Max
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Voltage Rating
- 240V AC
- Weight
- 0.199kg
- Width
- 35mm
