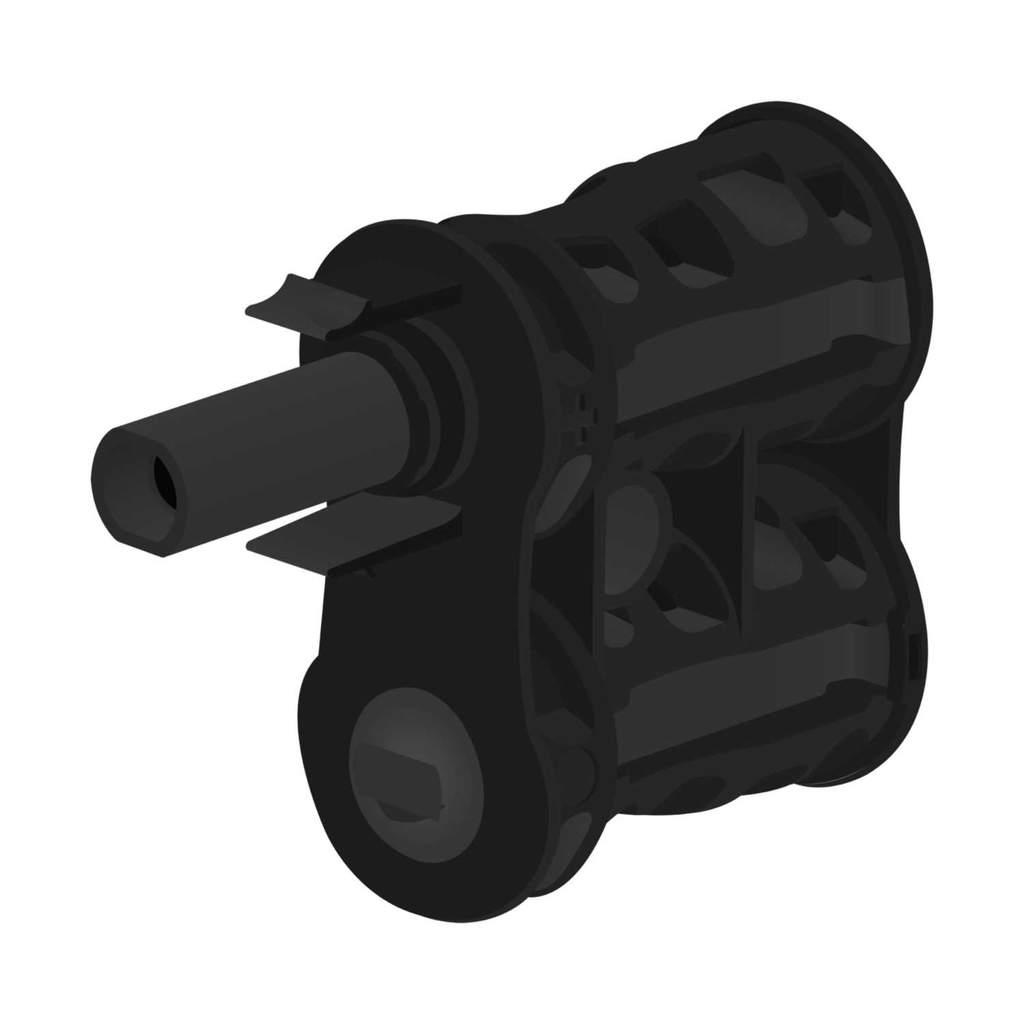

Staubli MC4-Evo 2 Branch Plug Connector 1 Male to 2 Female
Part Number: 32.0197
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Plug and play, no crimping necessary
- Mating compatibility with original MC4 and MC4-Evo 2 cable connectors
- DC 1500 V according to IEC 62852 and UL 6703
- Resistance to salt mist spray
- IP65 / IP68 when mated
- Colour
- Black
- Dimensions
- (L)55 mm x (H)42.8 mm
- Guarantee
- 1 Year
- Height
- 42.8mm
- IP Rating
- IP68
- Length
- 55mm
- Material
- Plastic
- Packaging Types
- Each
- Product Range
- MC4 Solar PV Connectors
- Temperature Range
- -40 - 85°C
- Type
- MC4 Branch Connectors
- Unspsc V18
- 39121409
- Unspsc V24
- 39121409
- Voltage Rating
- 1500V DC
