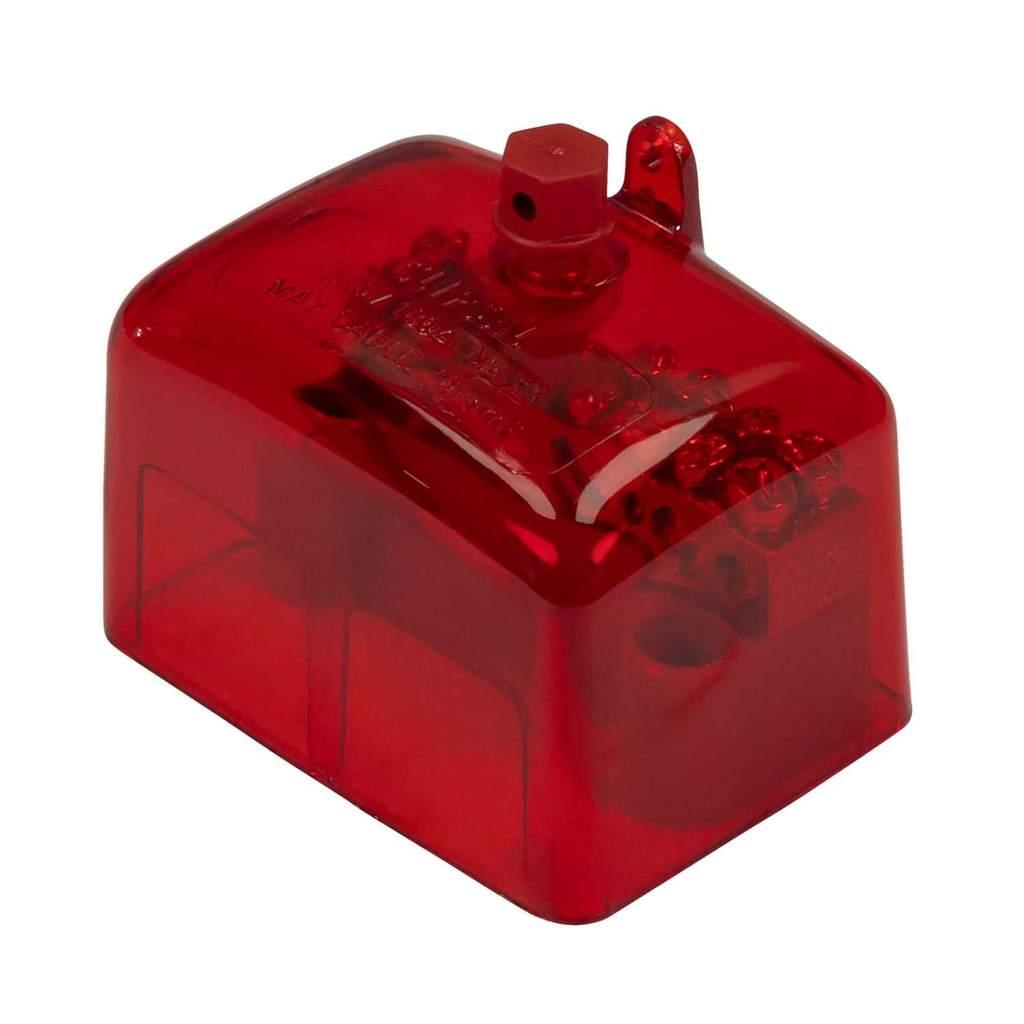

Clipsal 100A 7 Hole Active Link Red
Part Number: L7R
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Termination block for electrical circuits
- Red screw down cover
- 3 tunnels, 6.3mm diameter accommodate 1 x 16mm² cable
- 4 tunnels, 5.8mm diameter accommodate 1 x 16mm² cable
- Two screws per tunnel
- Mounting centres: 46mm
- Colour
- Red
- Current Rating
- 100A
- Depth
- 43mm
- Dimensions
- (H)46 mm x (W)65 mm x (D)43 mm
- Guarantee
- 1 Year
- Height
- 46mm
- Material
- Plastic / Brass
- Number Of Terminals
- 7
- Packaging Types
- Each
- Product Range
- MAX9
- Type
- Active Link
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 500V
- Weight
- 0.103kg
- Width
- 65mm
