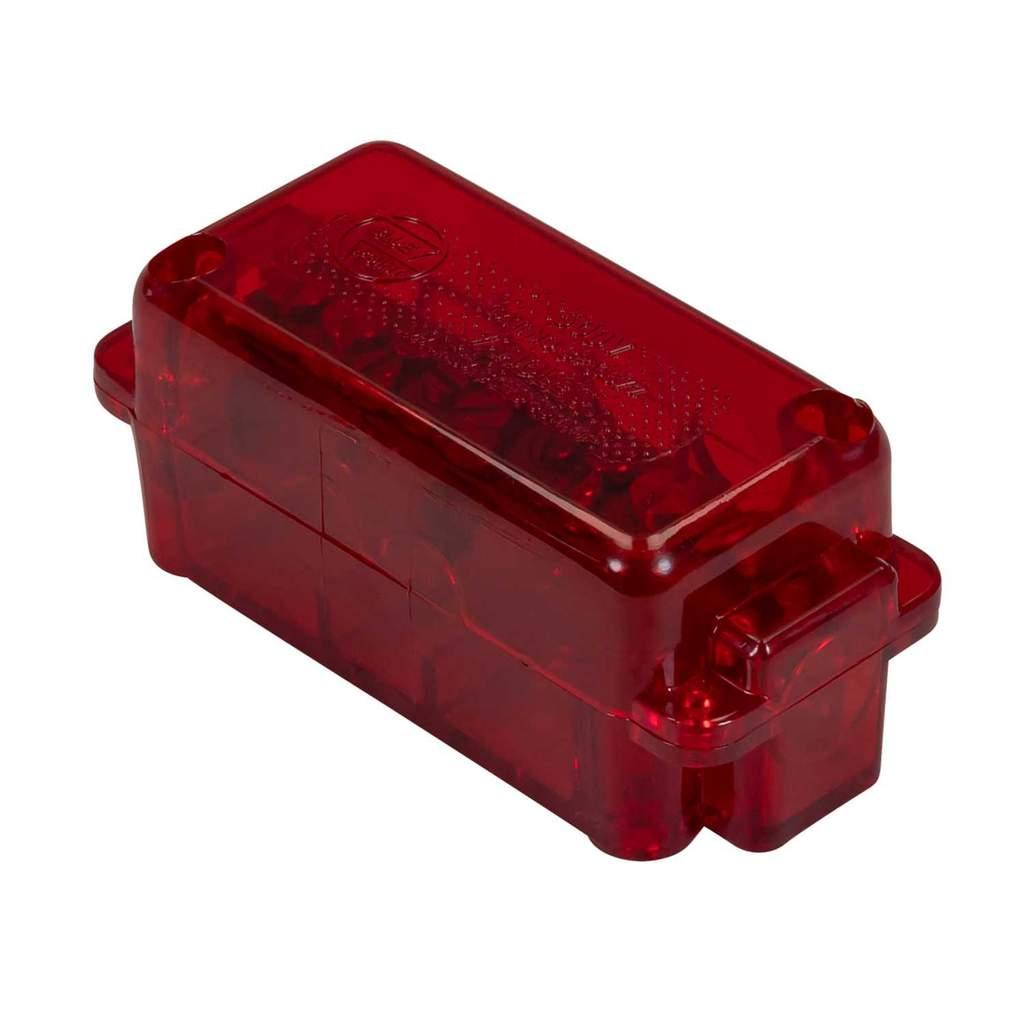

Clipsal 165A 7 Hole Active Link Red
Part Number: BP165/7-RD
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Termination block for electrical circuits
- Red screw down cover
- 500V rated
- 2 x terminals at max 16mm² cable
- 2 x terminals at max 25mm² cable
- 1 x terminals at max 35mm² cable
- 2 x terminals at max 50mm² cable
- Colour
- Red
- Current Rating
- 165A
- Depth
- 40mm
- Dimensions
- (H)43 mm x (W)100 mm x (D)40 mm
- Guarantee
- 1 Year
- Height
- 43mm
- Material
- Plastic/Brass
- Number Of Terminals
- 7
- Packaging Types
- Each
- Product Range
- Blue Point
- Type
- Active Link
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 500V
- Weight
- 0.209kg
- Width
- 100mm
