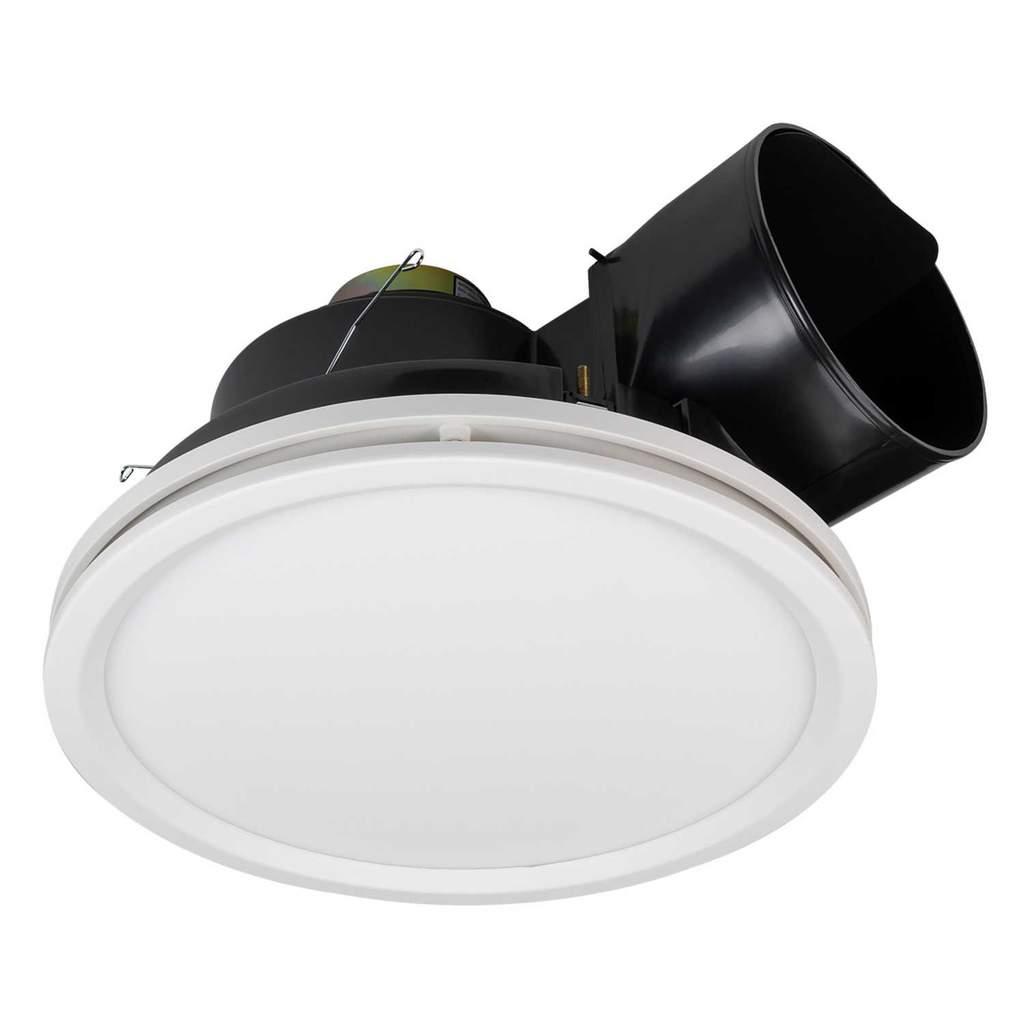

Atom Eclipse 290mm Ducted Exhaust Fan with Tri-Colour LED Round Fascia Matt White
Part Number: 16760
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 35W ball bearing motor
- 18W, 3K/4K/5K LED panel in fascia
- Draught stopper for improved energy efficiency and to keep out insects
- 150mm duct spigot
- 290mm cut-out
- Quiet operation
- Supplied with 900mm flex and 3 pin plug
- Airflow Cubic Metresper Hour
- 350 m³/h
- Cable Length
- 900mm
- Class Type
- Class 1
- Colour
- White
- Decibel Rating
- 45 dB
- Depth
- 195mm
- Diameter
- 330mm
- Dimensions
- (Dia)330 mm x (D)195 mm
- Ducting Size
- 150mm
- Finish
- Matt
- Frequency
- 50 Hz
- Guarantee
- 3 Years
- Hole Size
- 290mm
- IP Rating
- IPX4
- Material
- Plastic
- Motor Type
- Ball Bearing
- Mounting
- Recessed
- Mounting Depth
- 220mm
- Operation Type
- Extraction
- Packaging Types
- Each
- Power Rating
- 35W
- Product Range
- Eclipse
- Shape
- Round
- Standards
- AS/NZS 60335.1 AS/NZS 60335.2.80 AS/NZS CISPR 14.
- Supplied With
- Plug and Lead
- Type
- Exhaust Fan
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 240V AC
- Weight
- 2.371kg
