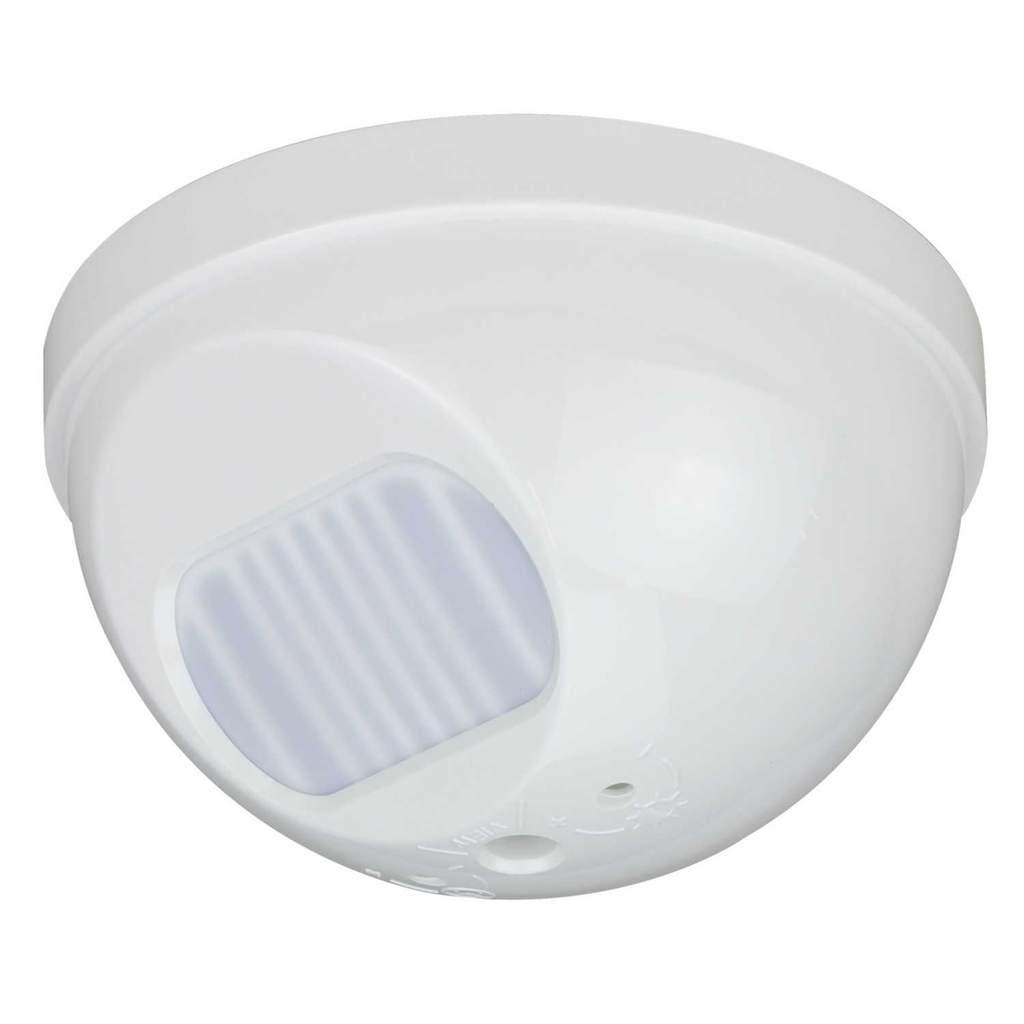

Clipsal 10A 3 Wire Indoor 120 Degree Motion Sensor
Part Number: 751R-WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Passive infrared movement sensor
- Automatic with manual override
- 0 - 120° horizontal detection area
- 12m detection area at 2.4m mounting height
- Creep zone protection
- 3 wire design
- Colour
- White
- Current Rating
- 10A
- Depth
- 57mm
- Detection Angle
- 120°
- Detection Range
- 6m
- Diameter
- 100mm
- Dimensions
- (Dia)100 mm x (D)57 mm
- Guarantee
- 2 Years
- IP Rating
- IP20
- Material
- Plastic
- Maximum Switching Load
- 2300W
- Mounting
- Surface
- Mounting Height
- 2.4m
- Number Of Wire Connections
- 3
- Override Switch
- Yes
- Packaging Types
- Each
- Product Range
- Infrascan
- Sensor
- PIR
- Shape
- Round
- Standards
- AS/NZS 60669.2.1 AS/NZS 60669.1
- Suitable For
- Indoor Use
- Timer Range
- 5 sec – 20min
- Type
- Motion Sensor
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 240V AC
- Weight
- 0.151kg
