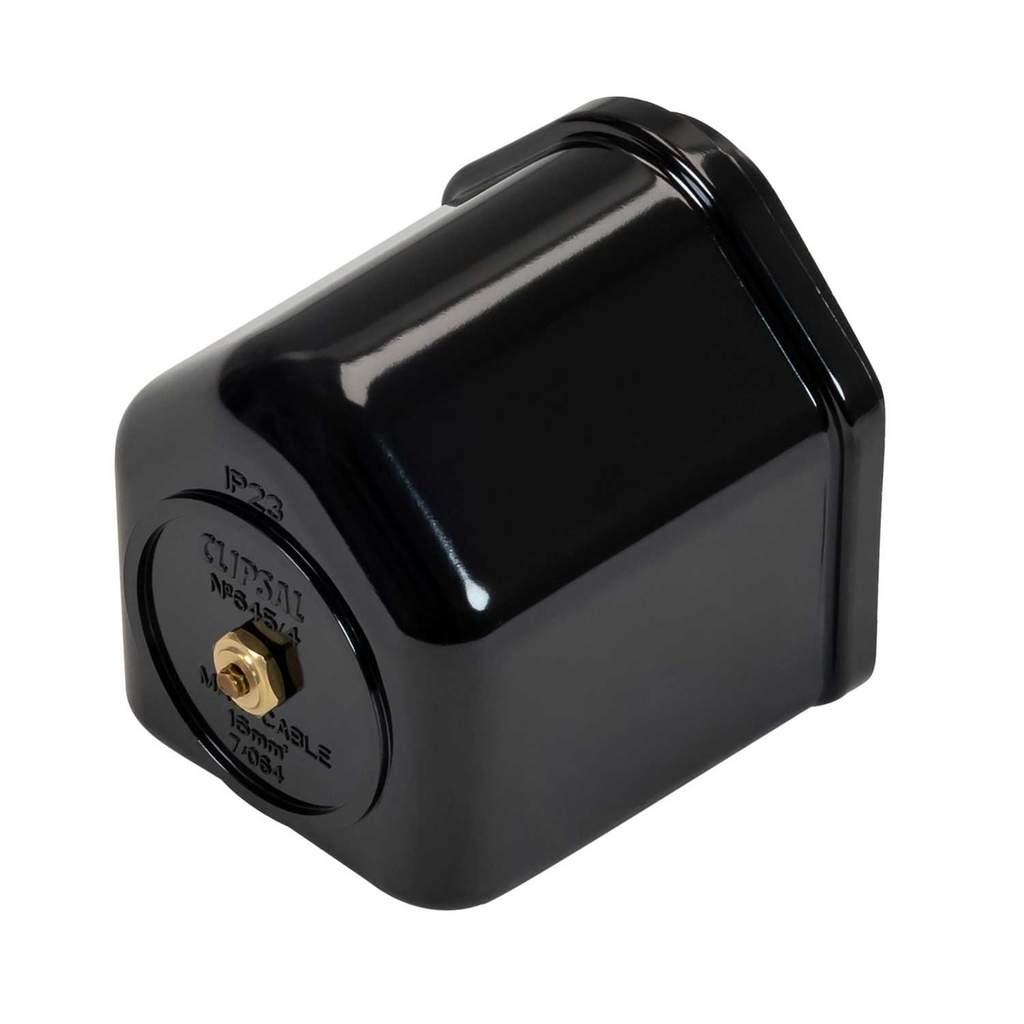

Clipsal 4 Terminal Mains Connection Box Black
Part Number: 645/4-BK
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Utilised to connect overhead electrical supply mains from the electrical utilities supplier to a building
- Rated to withstand up to 500V
- Accommodates up to 25mm² cables
- Dual conduit entries for 25-32mm
- Unfused
- Colour
- Black
- Compliance
- AS 60529
- Depth
- 73mm
- Dimensions
- (H)67 mm x (W)67 mm x (D)73 mm
- Guarantee
- 1 Year
- Height
- 67mm
- Incoming Terminal Capacity
- 4 x 25mm²
- Material
- PA (Polyamide) 6
- Mounting
- Surface
- Number Of Terminals
- 4
- Packaging Types
- Each
- Product Range
- 645 Series
- Standards
- AS/NZS3100
- Type
- Mains Connection Box
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 500V AC
- Weight
- 0.171kg
- Width
- 67mm
