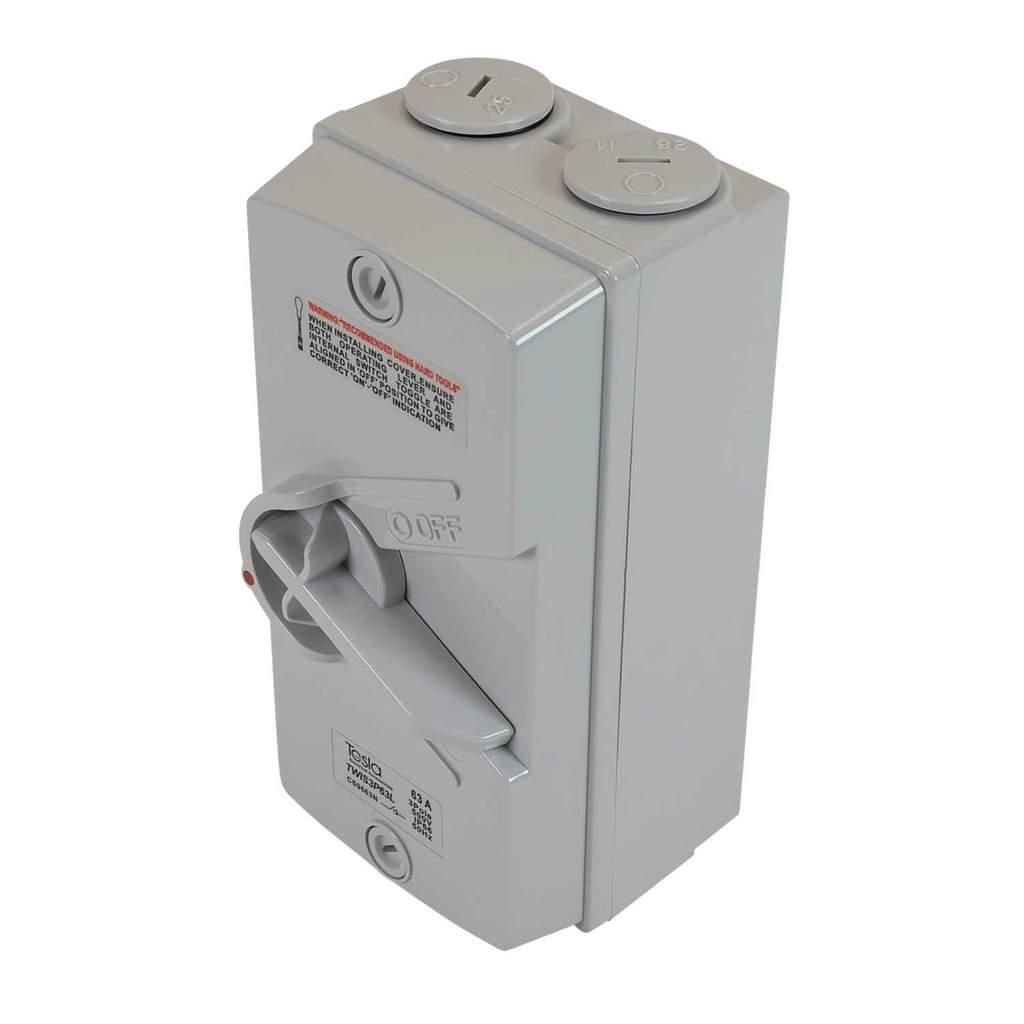

Tesla 63A 3 Pole Large Weatherproof Isolator IP66 Grey
Part Number: TESTWIS3P63L
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Weatherproof lever handle isolator
- ON/OFF position clearly indicated
- Dual 25mm screwed conduit entries top and bottom which allows four ways to wire the switch
- Fixed earth and neutral connector bars with dual clamping screws per tunnel
- A hole is provided for padlocking the lever in the OFF position
- Supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits, and screw caps
- Screw caps must be installed to ensure IP rating
- Colour
- Grey
- Current Rating
- 63A
- Depth
- 90mm
- Dimensions
- (H)175 mm x (W)80 mm x (D)90 mm
- Guarantee
- 1 Year
- Height
- 175mm
- Ip Rating
- IP56
- Material
- Plastic
- Mounting
- Surface
- Number Of Gangs
- 1
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Weather Proof Switches
- Shape
- Rectangular
- Type
- Isolating Switch
- Voltage Rating
- 415V AC
- Weight
- 0.46kg
- Width
- 80mm
