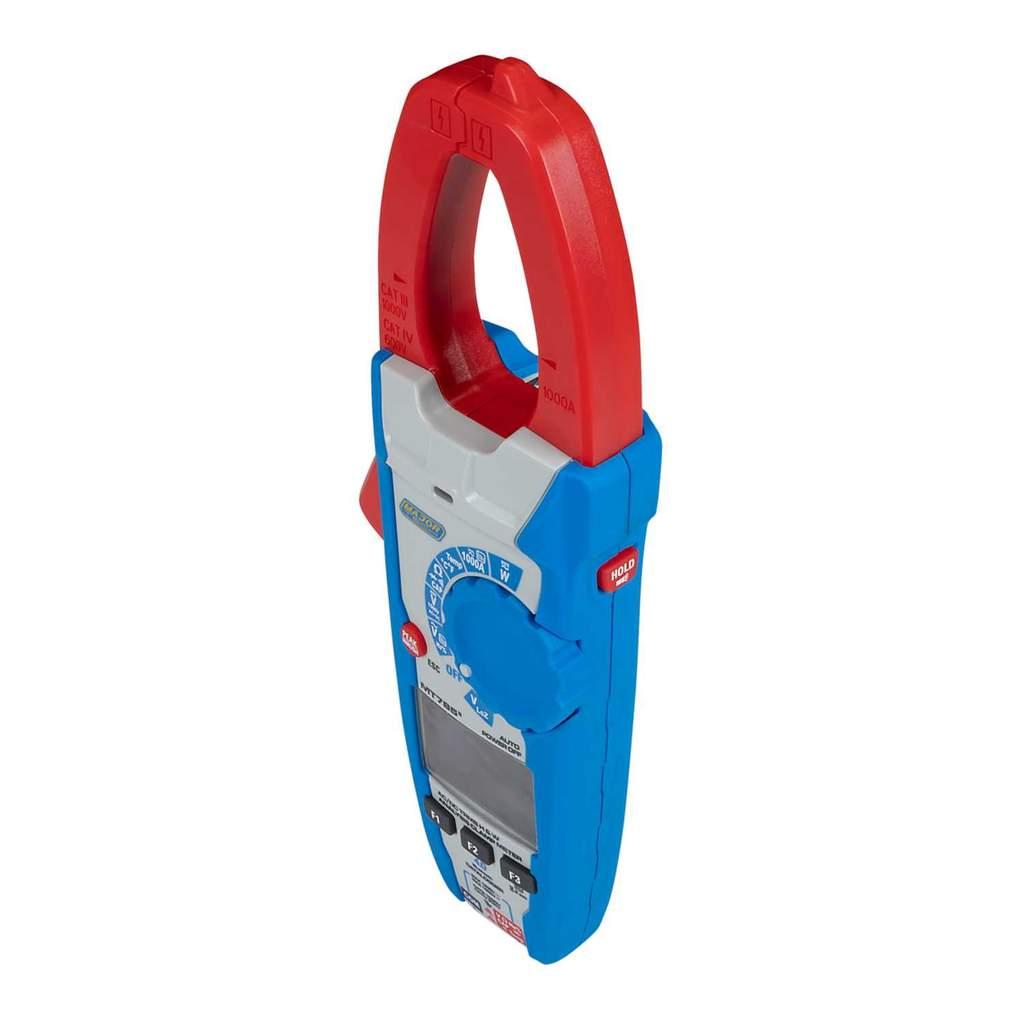

Major Tech 1500V DC H and W Analysis Clamp Meter
Part Number: MT785
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Digital clamp meter that measures up to 1000A AC/DC with an analogue bargraph indication on a TFT colour display
- Simultaneously measures and displays active, reactive and apparent power and energy, also current harmonic analysis up to the 25th order
- Ø33mm cable clamp size
- Measurement of AC and DC current up to 1000V
- TRMS AC voltage to 1000V, DC voltage up to 1500V and AC DC voltage measurements
- Active, reactive, apparent power and power factor on single phase AC and DC power measurements
- Energy measurements on single phase - active, reactive and apparent
- Capacitance to 6000µF
- Trend capture function
- Inrush current measurements
- AC voltage and current harmonics (1 – 25) and THD% up to 75Hz (1 – 8 above 75Hz)
- LoZ - low impedance mode prevents false readings due to “ghost” voltage
- Non contact voltage detector
- Built-in flashlight
- Continuity buzzer and diode test
- Peak mode, min/max and data hold function
- Auto power off
- Ac Current Measurement
- 1000A
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- 9V
- Battery Type
- Alkaline
- Capacitance Measurement
- 6000µF
- Colour
- Blue/White
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Current Measurement
- 1000A DC
- Dc Voltage Measurement
- 1500V DC
- Depth
- 40mm
- Dimensions
- (H)230 mm x (W)70 mm x (D)40 mm
- Display Count
- 6000
- Display Type
- TFT Colour LCD Display
- Frequency Measurement
- 99.99 kHz
- Guarantee
- 2 Years
- Height
- 230mm
- Jaw Opening Capability
- 33mm
- Material
- Plastic
- Number Of Batteries
- 1
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 600.0 Ω – 60.00 MΩ
- Resistance Measurement
- 600.0 Ω – 60.00 MΩ
- Safety Range
- CAT IV 600V and CAT III 1000V
- Standards
- IEC 61010-1
- Supplied With
- Carrying Case 9V Battery Test Leads Instruction Manual
- Temperature Range
- -40-1000°C
- Type
- Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Voltage Rating
- 1500V DC
- Weight
- 0.583kg
- Width
- 70mm
