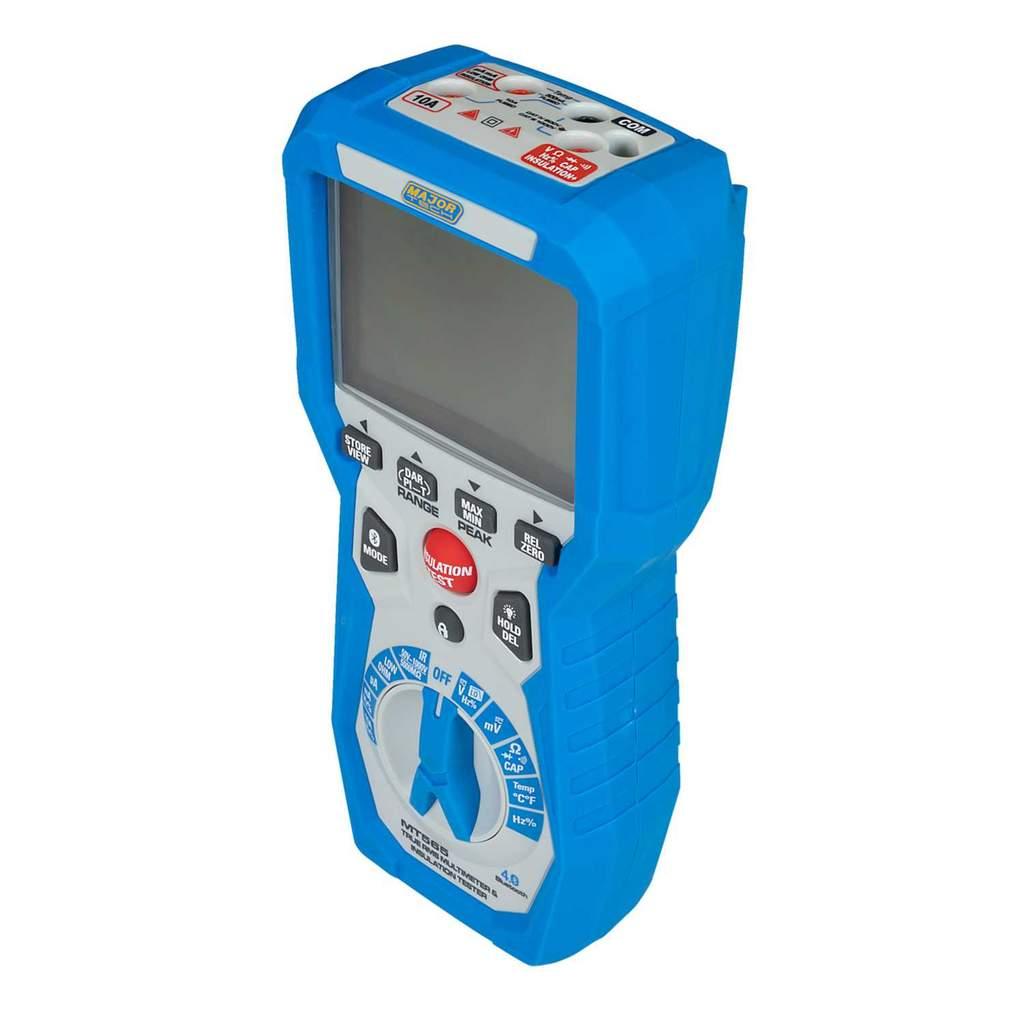

Major Tech Bluetooth Insulation Tester and Multimeter
Part Number: MT565
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 50,000 Counts with analogue bargraph backlit LCD display
- Measures AC and DC voltage up to 1000V
- Measures AC and DC current up to 10A
- 5 insulation test ranges 50V, 100V, 250V, 500V, 1000V
- Insulation Resistance up to 5GΩ
- Temperature measurement from -50⁰C to 1200⁰C
- Capacitance to 10mF
- Frequency to 10MHz
- Low pass filter for measurement of variable frequency drive (VFD)
- Peak hold function for voltage and current measurements
- Download stored data to iOS or Android app via Bluetooth
- Continuity buzzer
- Min/max and data hold function
- IP65 double molded rugged waterproof housing
- Ac Current Measurement
- 10A
- Ac Voltage Measurement
- 1000V AC
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Blue/White
- Continuity Check
- Yes
- Dc Current Measurement
- 10A DC
- Dc Voltage Measurement
- 1000V DC
- Depth
- 68mm
- Dimensions
- (H)210 mm x (W)97 mm x (D)68 mm
- Display Count
- 50000
- Display Type
- LCD Display
- Guarantee
- 2 Years
- Height
- 210mm
- IP Rating
- IP65
- Material
- Plastic / Rubber
- Number Of Batteries
- 6
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 500Ω – 50MΩ
- Resistance Measurement
- 500Ω – 50MΩ
- Safety Range
- CAT IV 600V and CAT III 1000V
- Standards
- IEC 61010-1
- Supplied With
- Test Leads Magnetic Strip Remote Test Leads Black Croc Lead Hard Carrying Case 6 x AA Batteries Instruction Manual
- Type
- Insulation Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Voltage Rating
- 1000
- Weight
- 2.218kg
- Width
- 97mm
